Aqua Products Automatic Pool Cleaner
Parts For:

Aquabot® Xtreme Parts

 ↓ Scroll Down To Order Parts. ↓
Most Parts In Stock.
Ready For Immediate Shipment!
Lowest Prices & Express Shipping!

Technical Support
Call Toll Free 1-866-876-8643
Technical Support

We Sell Both Factory Original & TOMCAT® High Quality Discount Replacement Parts.

*These TOMCAT® Parts Are Manufactured By Aquaquality Pools & Spas, inc. And Are Not Made By Aqua Products, inc.
 TOMCAT® Parts Are Lower Priced For Valued Savings Combined With High Quality!!

ITEM #


AQUAQUALITY P/N

AQUA PRODUCTS P/N

DESCRIPTION

PRICE

BUY NOW
  Tomcat Replacement Parts : Drive Belts (Pair) 001-0600* 3302 Just Need A Pair Of Drive Belts?
 DRIVE BELTS (PAIR)
 Replacement For: Aqua Products P/N: 3302
 Belts & U.S. Mail (Also: HI, AK, PR)
 TOMCAT® REPLACEMENT PART		 $19.99
Quantity:
  Tomcat Replacement Parts : Drive Belt Kit 010-700* 3302, 3506 DRIVE BELT KIT
 NOT OFFERED BY AQUA PRODUCTS.
 Replacement For: Aqua Products P/N: 3302, 3506
 includes 2 Stepped Sleeve Rollers,
 To Properly Tighten Drive Belts.
 THIS IS OUR RECOMMENDATION!
 TOMCAT® REPLACEMENT PART		 $19.99
Quantity:

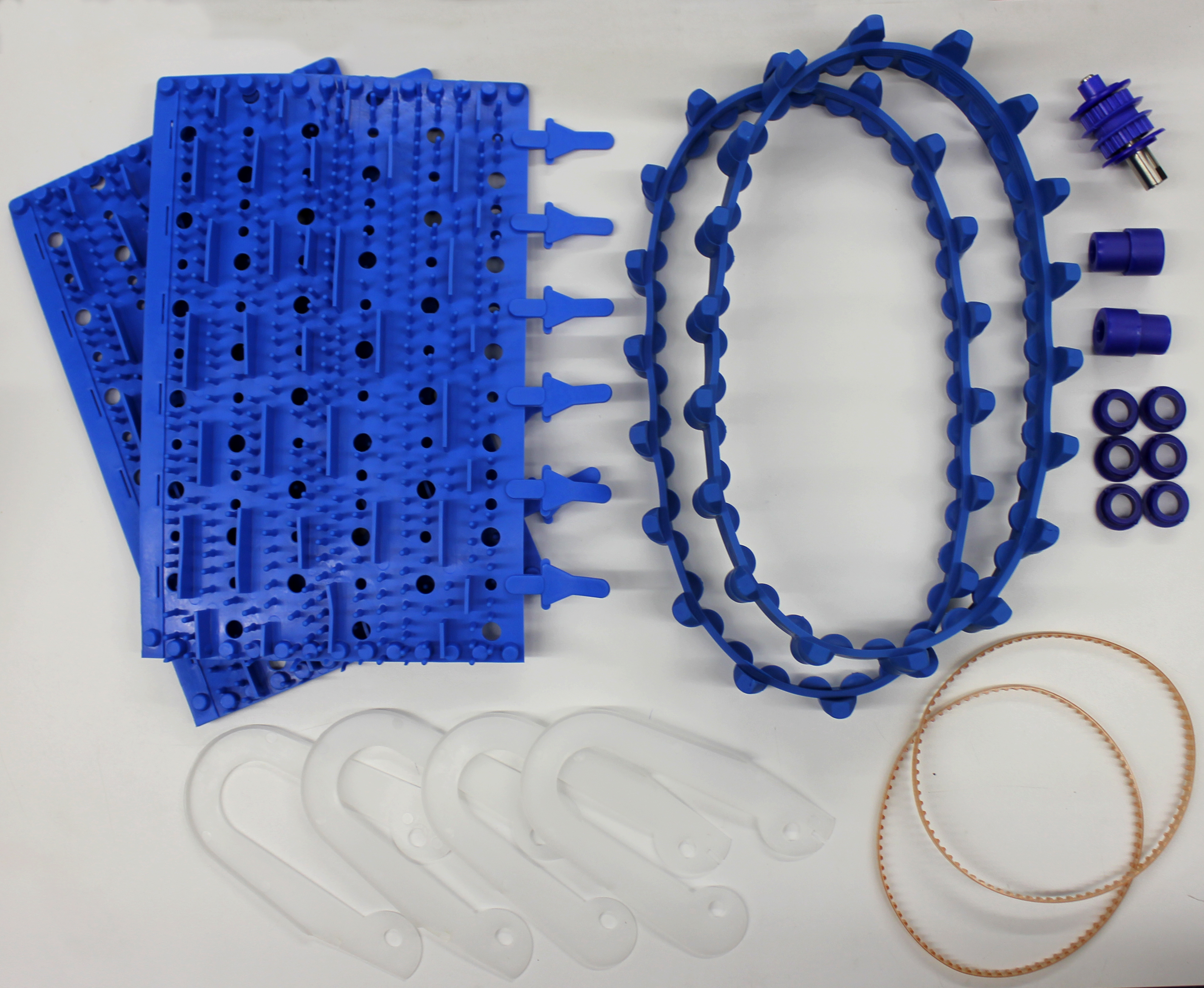

  Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Tune-Up Kit 010-030* SK2675, 3203, 3302,
2600, A3600, 2506, 3002B & 8100 NEW # 8111		 TUNE-UP KIT w/TRACKS w/TABS
 NOT OFFERED BY AQUA PRODUCTS.
Replacement For: Aqua Products P/N:
 SK2675, 3203, 3302, 2600, A3600, 2506,
3002B & 8100 NEW # 8111
THIS IS OUR RECOMMENDATION!
TOMCAT® REPLACEMENT PART		 $154.99
Quantity:
  Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Tune-Up Kit 010-000* 3302, 3506, 3201,
3002B & 8100 NEW # 8111		 TUNE-UP KIT w/RUBBER BRUSHES
 NOT OFFERED BY AQUA PRODUCTS.
Replacement For: Aqua Products P/N:
 3302, 3506, 3201, 3002B & 8100 NEW # 8111
THIS IS OUR RECOMMENDATION!
TOMCAT® REPLACEMENT PART		 $139.99
Quantity:
  Tomcat Replacement Parts : Filter Bags 010-XXX* 8100 NEW # 8111
&
8200 NEW # 8112		 FILTER BAG SPECIAL (20 Pack)
 NOT OFFERED BY AQUA PRODUCTS.
 Replacement For: Aqua Products P/N:
8100 NEW # 8111 & 8200 NEW # 8112
10 Fine Filter Bags
10 Mesh Filter Bags
THIS IS OUR RECOMMENDATION!
TOMCAT® REPLACEMENT PART		 $179.99
Quantity:
  Tomcat Replacement Parts : Filter Bags 010-800* 8100 NEW # 8111
&
8200 NEW # 8112		 FILTER BAG SPECIAL (3 Pack)
 NOT OFFERED BY AQUA PRODUCTS.
 Replacement For: Aqua Products P/N:
8100 NEW # 8111 & 8200 NEW # 8112
2 Fine Filter Bags
1 Mesh Filter Bag
THIS IS OUR RECOMMENDATION!
TOMCAT® REPLACEMENT PART		 $89.99
Quantity:
  Tomcat Replacement Parts : Filter Bags 010-805* 8100 NEW # 8111
&
8200 NEW # 8112		 FILTER BAG SPECIAL (3 Pack)
 NOT OFFERED BY AQUA PRODUCTS.
 Replacement For: Aqua Products P/N:
8100 NEW # 8111 & 8200 NEW # 8112
1 Fine Filter Bag
2 Mesh Filter Bags
THIS IS OUR RECOMMENDATION!
TOMCAT® REPLACEMENT PART		 $59.99
Quantity:
  Keep Your Pool Cleaner From Getting Stuck On Your Pools Main Drain With The Polaris Unibridge Unicover

More Info		 002-020 5820 POLARIS® UNIBRIDGE® / UNICOVER®
Does Your Pool Cleaner Get Stuck
On The Bottom Main Drain?
Just Place The Polaris® UniBridge® / UniCover®
On Top Of The Anti-Vortex Main Drain Grate.
The Pool Cleaner Will Now Cross Over Effortlessly!!
THIS IS OUR RECOMMENDATION!		 $69.99
Quantity:
1   023-4970 S2033SV-4H BODY ASSEMBLY $132.76
Quantity:
2   023-2550 2038BL SIDE PLATE, ROUND $36.58
Quantity:

3

   023-0630 2700 SCREW, SIDE PLATE
 		 $1.16
Quantity:

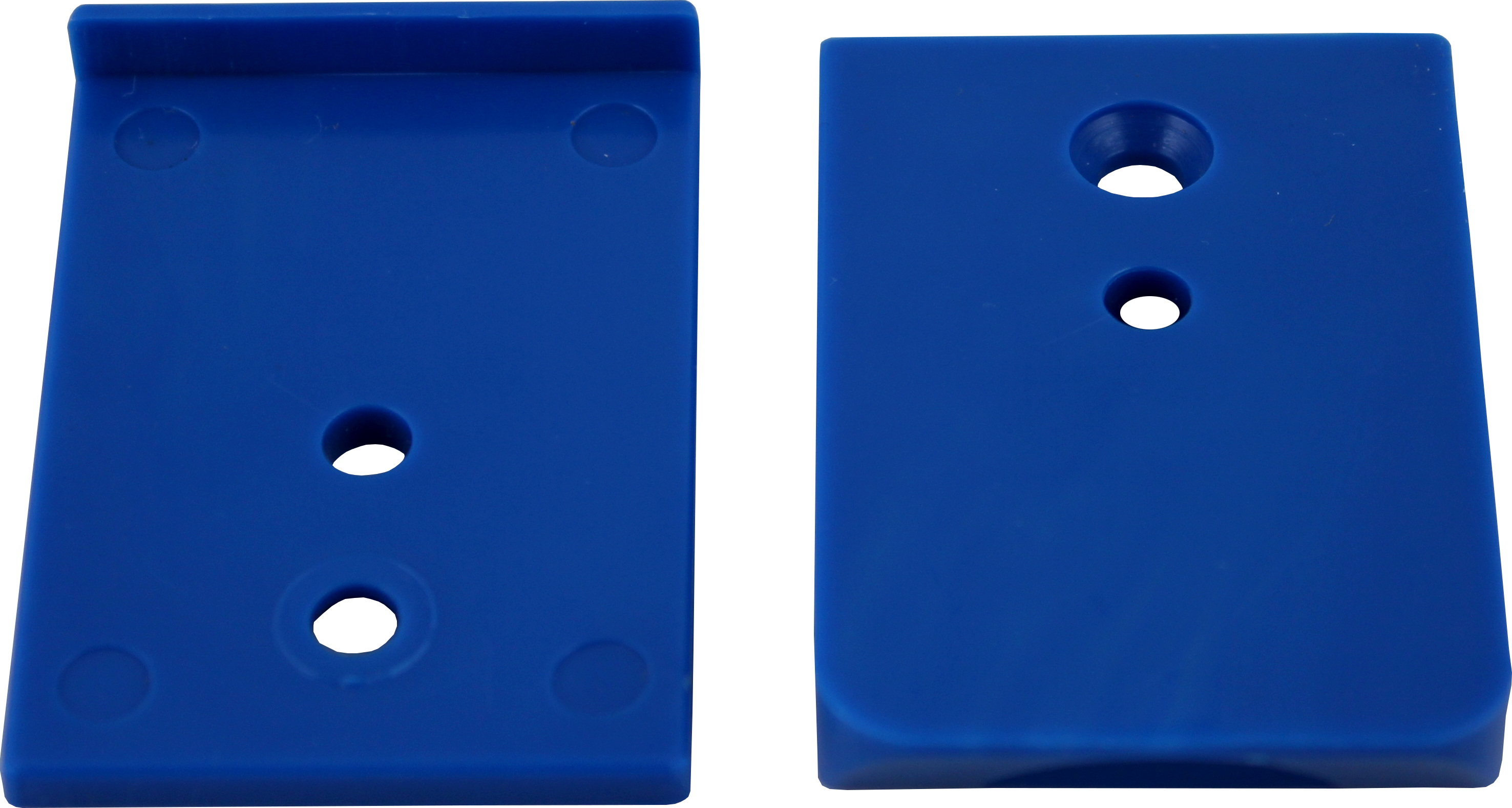

4 Tomcat Replacement Parts : Lock Tabs 001-1240* 9204BL LOCK TABS (PAIR)
 Replacement for Aqua Products P/N: 9204BL
REPLACING LOCK TABS WILL KEEP
THE BOTTOM LID ASSEMBLY
SECURE INSIDE THE MACHINE!
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
4 Tomcat Replacement Parts : Lock Tabs 001-1243* 9204BL LOCK TABS (PAIR) (BLUE)
 Replacement for Aqua Products P/N: 9204BL
REPLACING LOCK TABS WILL KEEP
THE BOTTOM LID ASSEMBLY
SECURE INSIDE THE MACHINE!
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
5   023-0440 2303 SCREW, LOCK TAB $1.16
Quantity:
6   023-1680 7133 NUT, LOCK TAB $0.76
Quantity:
7   023-2940 3387BL BRACKET, PW NOZZLE SUPPORT $10.26
Quantity:

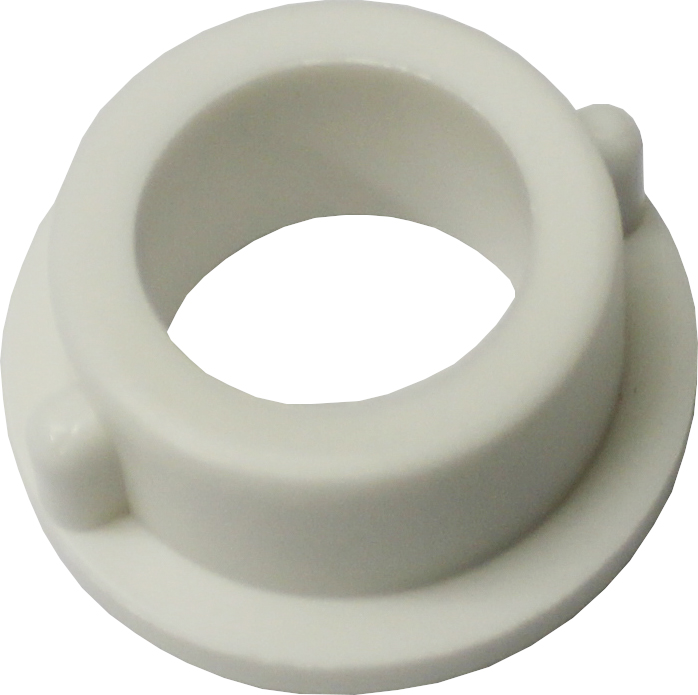

8 Tomcat Replacement Parts : Side Plate Bushing 001-0380* 2600 BUSHING, SIDE PLATE
Replacement For: Aqua Products P/N: 2600
We Recommend To Replace
Side Plate Bushings
With A Complete Set of 6.
TOMCAT® REPLACEMENT PART		 $2.00
Quantity:
8 Tomcat Replacement Parts : Side Plate Bushing 001-0389* 2600 BUSHING, SIDE PLATE (WHITE)
Replacement For: Aqua Products P/N: 2600
We Recommend To Replace
Side Plate Bushings
With A Complete Set of 6.
TOMCAT® REPLACEMENT PART		 $2.00
Quantity:

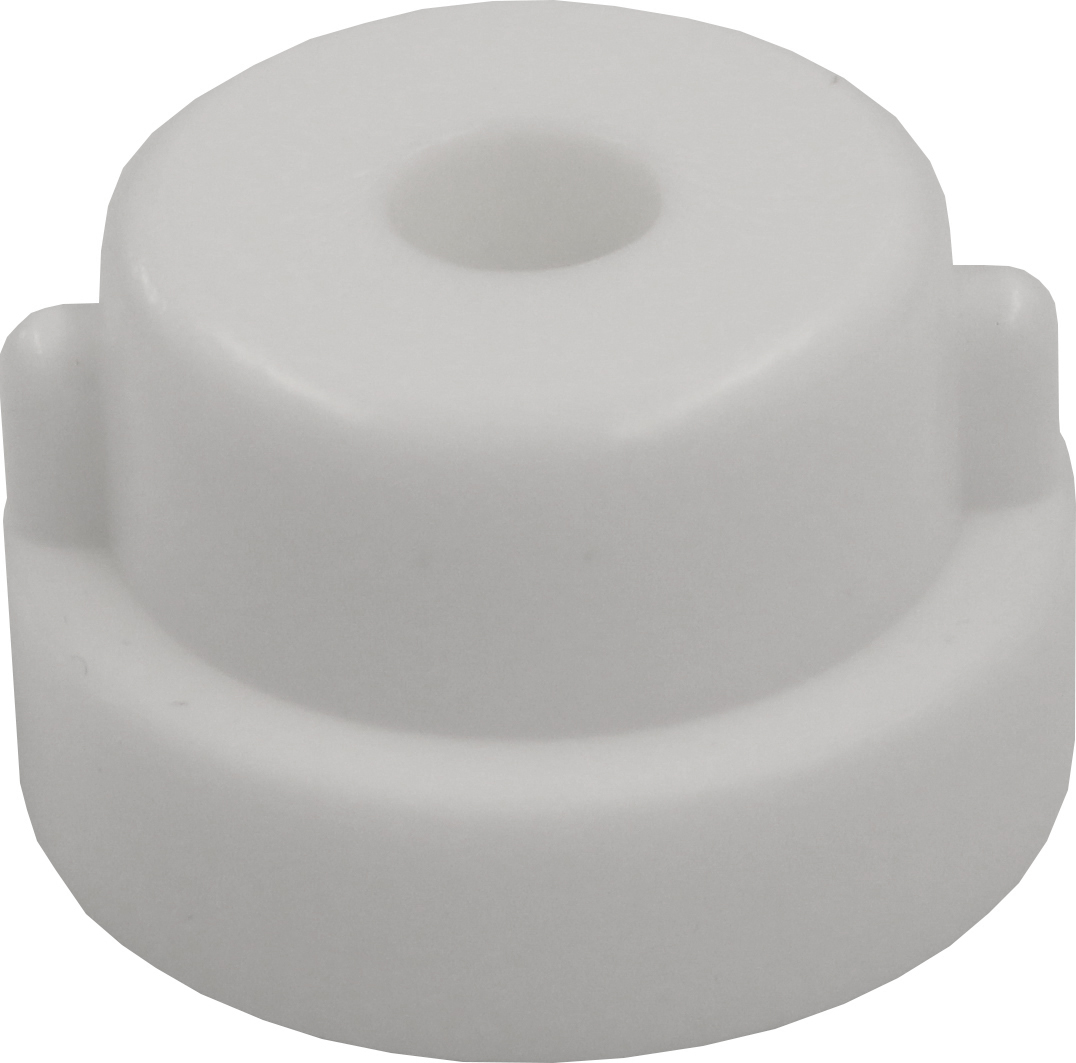

9 Tomcat Replacement Parts : Bushing For Pin Support 001-0420* 2610 BUSHING, PIN SUPPORT
Replacement For: Aqua Products P/N: 2610
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
9   001-0426* 2610 BUSHING, PIN SUPPORT (BLACK)
Replacement For: Aqua Products P/N: 2610
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
9 Tomcat Replacement Parts : Bushing For Pin Support 001-0429* 2610 BUSHING, PIN SUPPORT (WHITE)
Replacement For: Aqua Products P/N: 2610
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
10 Tomcat Replacement Parts : Medium Pulley Assembly 001-0780* A3605 PULLEY ASSEMBLY, MEDIUM
Replacement For: Aqua Products P/N: A3605
TOMCAT® REPLACEMENT PART		 $25.00
Quantity:
10 Tomcat Replacement Parts : Medium Pulley Assembly 001-0789* A3605 PULLEY ASSEMBLY, MEDIUM (WHITE)
Replacement For: Aqua Products P/N: A3605
TOMCAT® REPLACEMENT PART		 $25.00
Quantity:

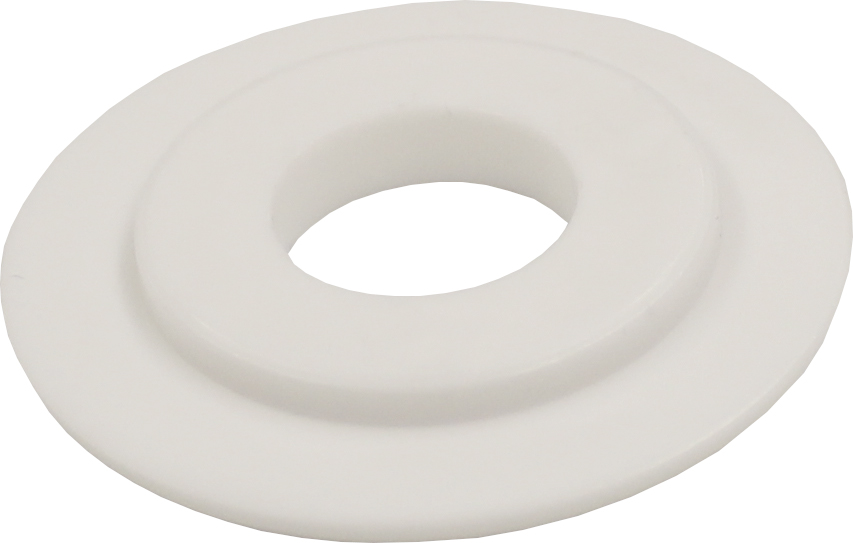

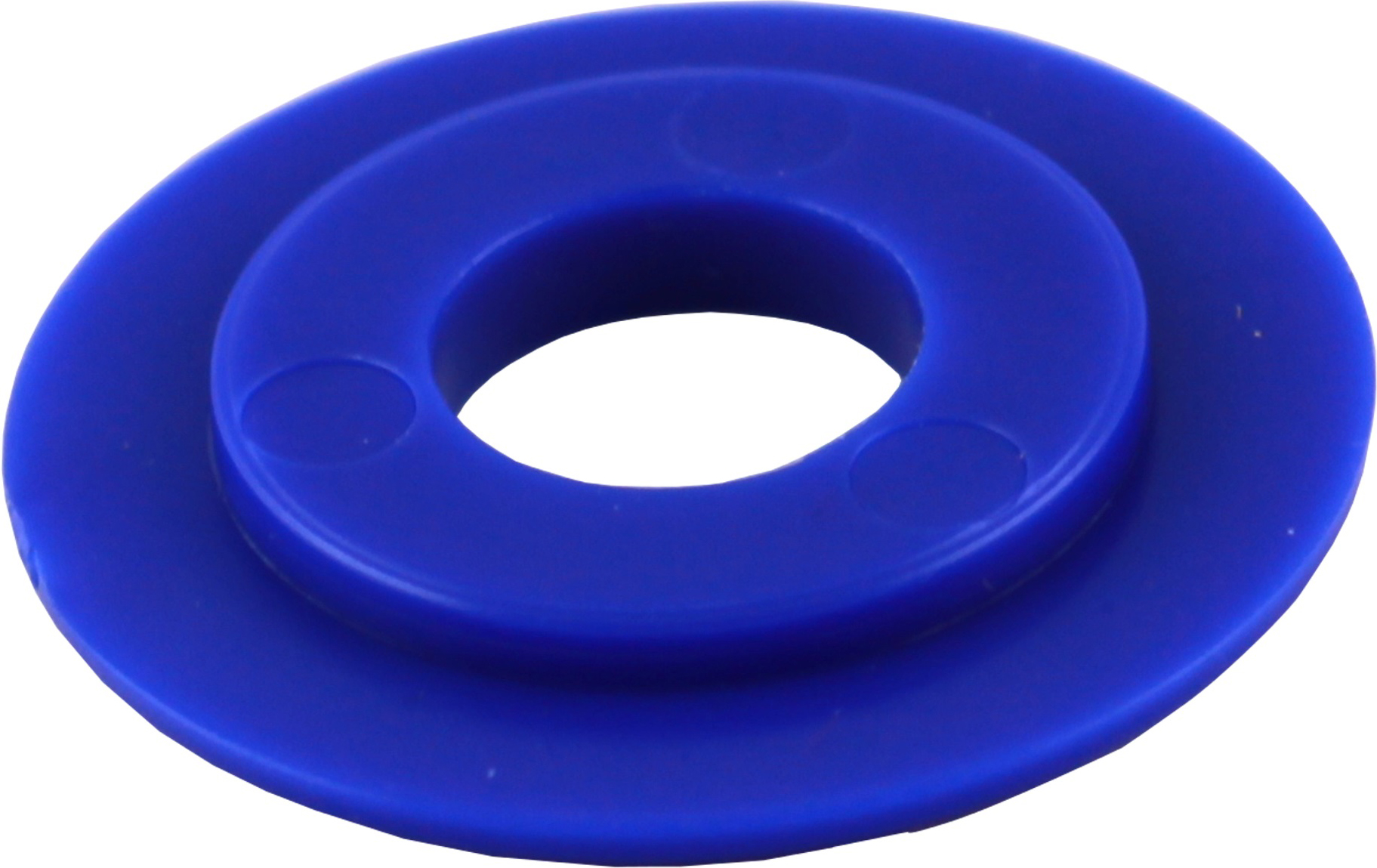

11 Tomcat Replacement Parts : Washer for Drive Pulley 001-0800* 3607 WASHER, DRIVE PULLEY
Replacement For: Aqua Products P/N: 3607
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
11 Tomcat Replacement Parts : Washer for Drive Pulley 001-0809* 3607 WASHER, DRIVE PULLEY (WHITE)
Replacement For: Aqua Products P/N: 3607
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:

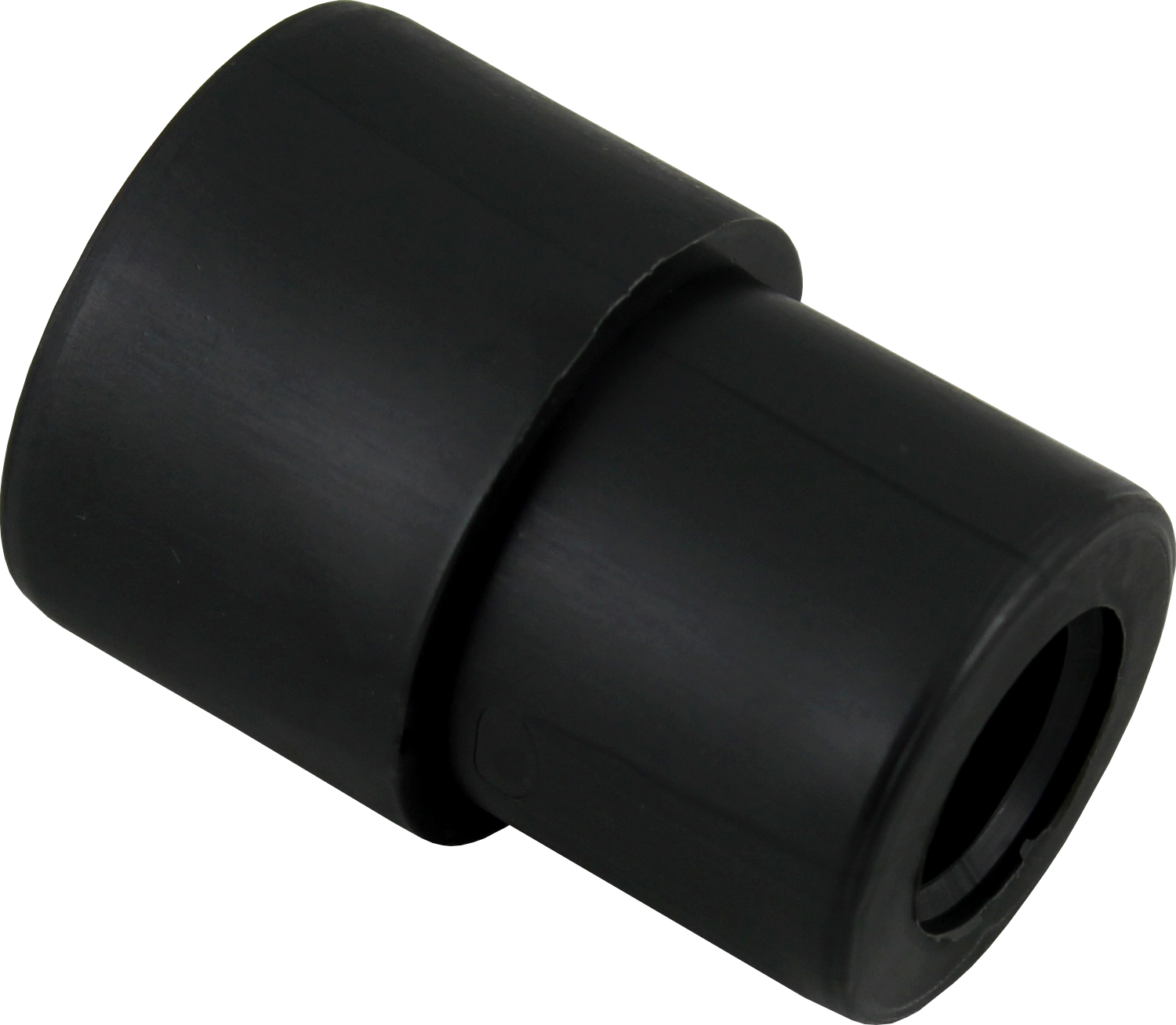

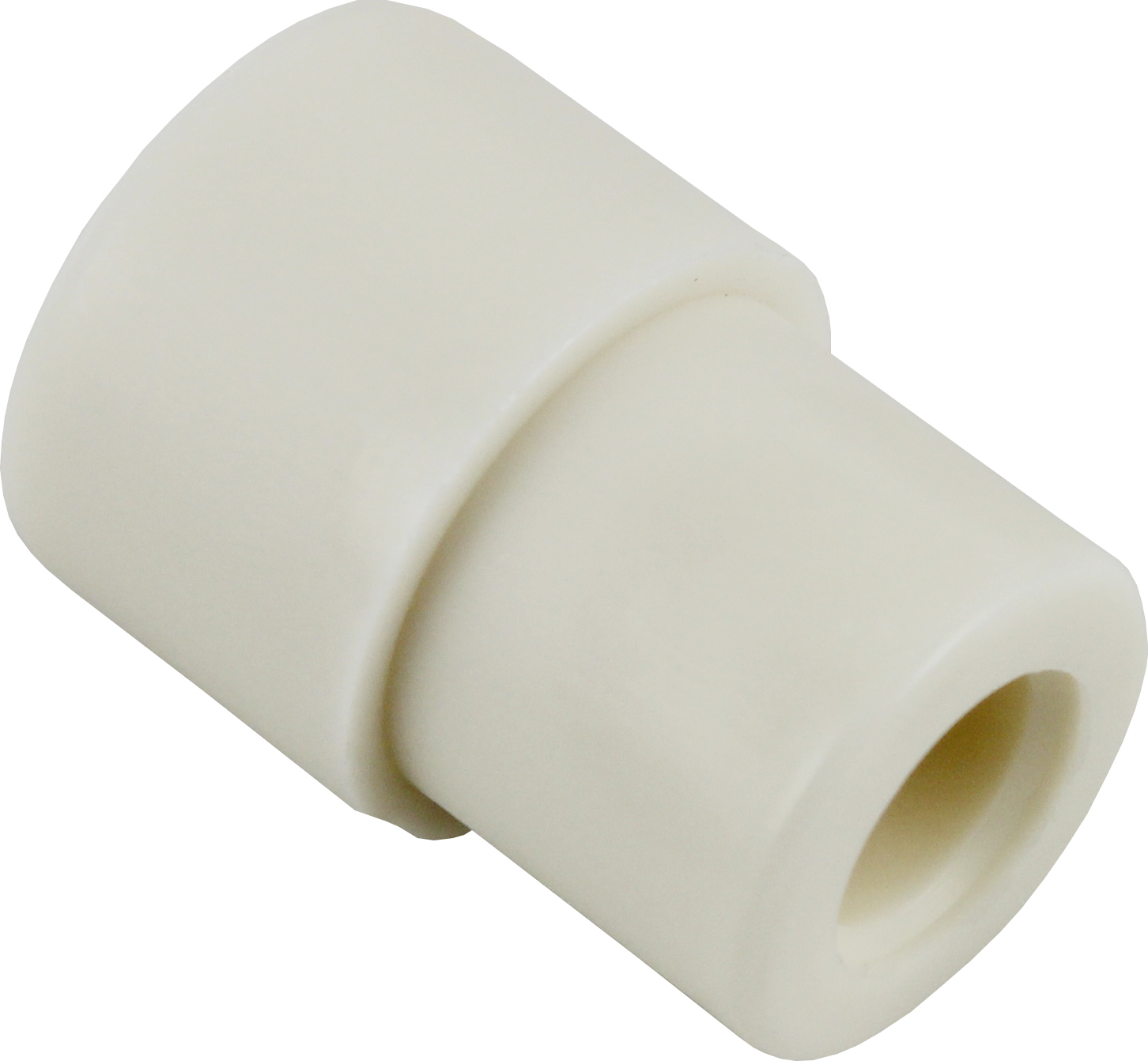

12 Tomcat Replacement Parts : Stepped Sleeve Roller 001-0740* 3506 STEPPED SLEEVE ROLLER
Replacement For: Aqua Products P/N: 3506
We Recommend To Replace
 Stepped Sleeve Roller In Pairs.
TOMCAT® REPLACEMENT PART		 $2.50
Quantity:
12 Tomcat Replacement Parts : Stepped Sleeve Roller 001-0746* 3506 STEPPED SLEEVE ROLLER (BLACK)
Replacement For: Aqua Products P/N: 3506
We Recommend To Replace
 Stepped Sleeve Roller In Pairs.
TOMCAT® REPLACEMENT PART		 $2.50
Quantity:
12 Tomcat Replacement Parts : Stepped Sleeve Roller 001-0749* 3506 STEPPED SLEEVE ROLLER (WHITE)
Replacement For: Aqua Products P/N: 3506
We Recommend To Replace
 Stepped Sleeve Roller In Pairs.
TOMCAT® REPLACEMENT PART		 $2.50
Quantity:

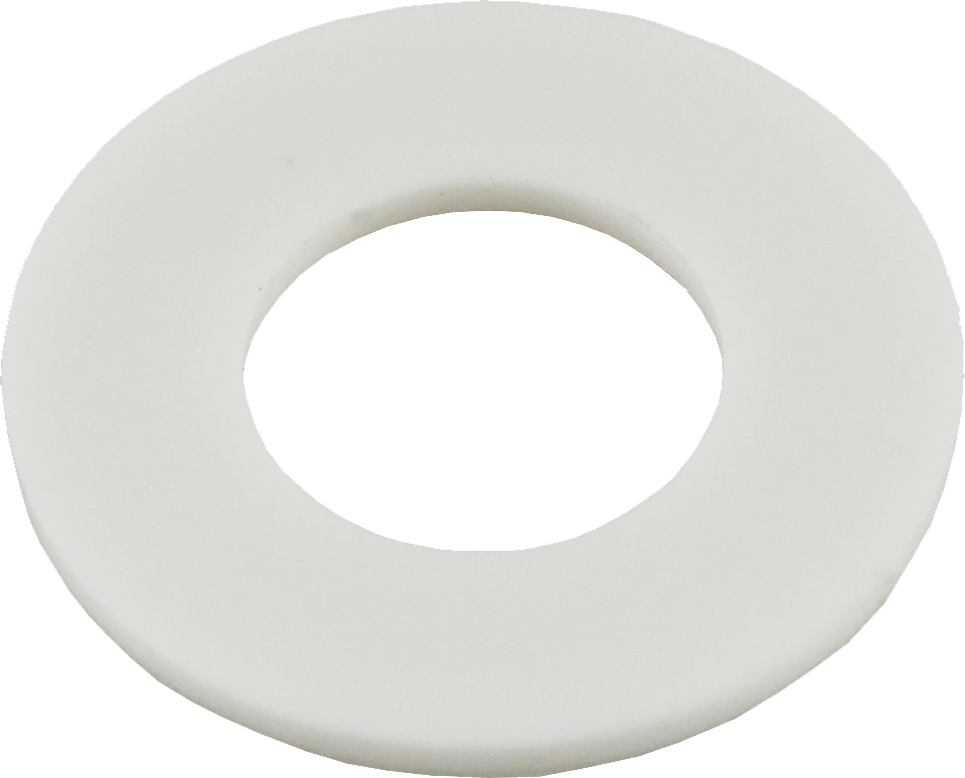

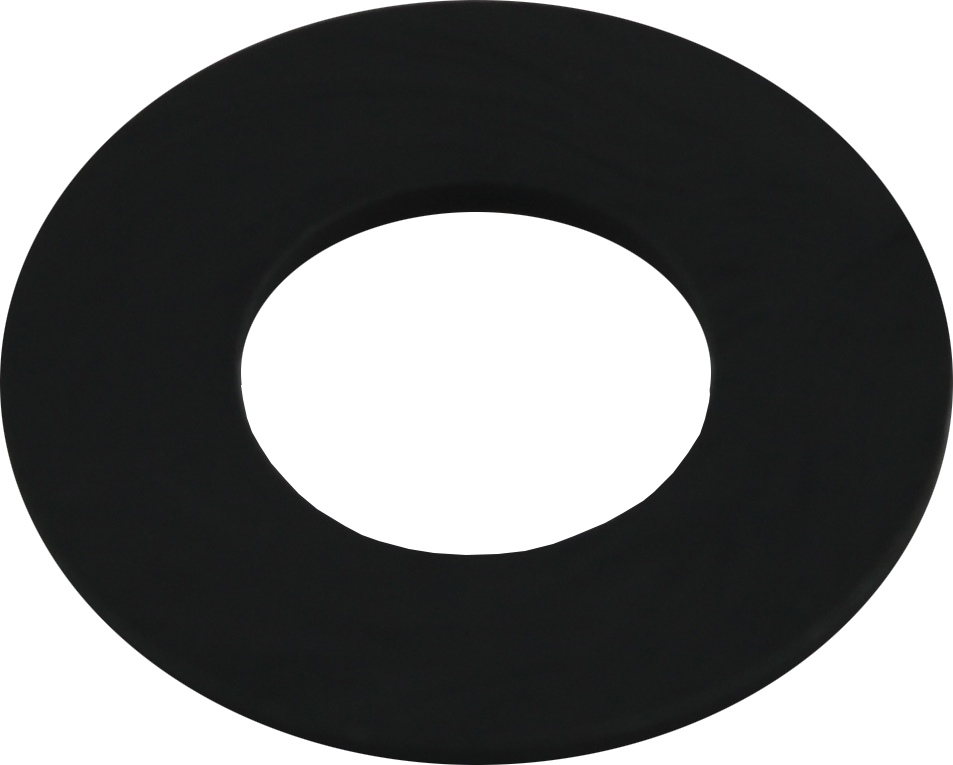

13 Tomcat Replacement Parts : Washer For Wheel Tube 001-0820* 3603 WASHER, WHEEL TUBE
Replacement For: Aqua Products P/N: 3603
TOMCAT® REPLACEMENT PART		 $1.20
Quantity:
13 Tomcat Replacement Parts : Washer For Wheel Tube 001-0826* 3603 WASHER, WHEEL TUBE (BLACK)
Replacement For: Aqua Products P/N: 3603
TOMCAT® REPLACEMENT PART		 $1.20
Quantity:
13 Tomcat Replacement Parts : Washer For Wheel Tube 001-0829* 3603 WASHER, WHEEL TUBE (WHITE)
Replacement For: Aqua Products P/N: 3603
TOMCAT® REPLACEMENT PART		 $1.20
Quantity:
14 Tomcat Replacement Parts : Drive Belts (Pair) 001-0600* 3302 DRIVE BELTS (PAIR)
Replacement For: Aqua Products P/N: 3302
TOMCAT® REPLACEMENT PART		 $14.99
Quantity:
15 Tomcat Replacement Parts : Large Roller 001-0720* 3700 LARGE ROLLER
Replacement For: Aqua Products P/N: 3700
TOMCAT® REPLACEMENT PART		 $3.25
Quantity:
15 Tomcat Replacement Parts : Large Roller 001-0729* 3700 LARGE ROLLER (WHITE)
Replacement For: Aqua Products P/N: 3700
TOMCAT® REPLACEMENT PART		 $3.25
Quantity:

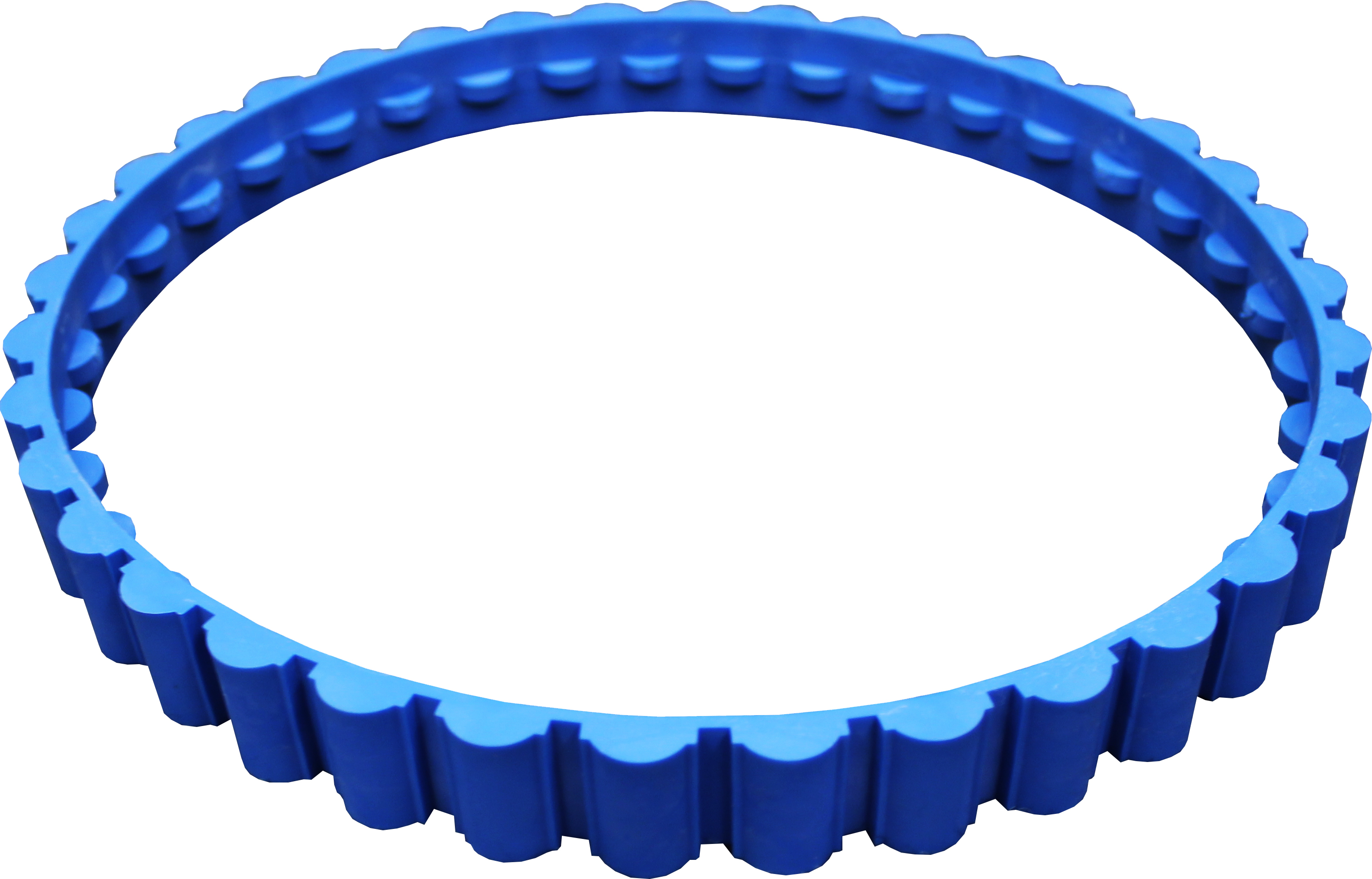

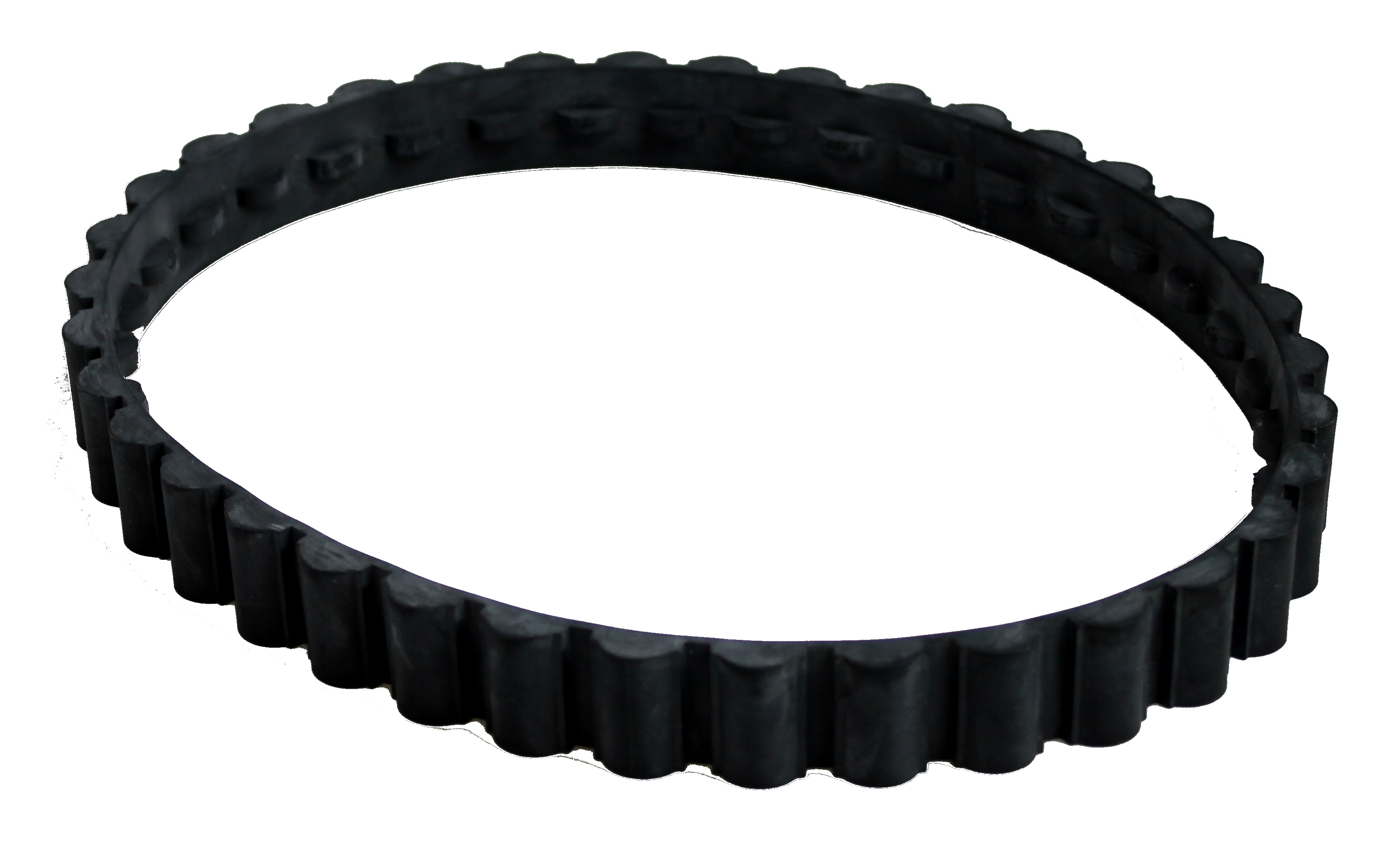

16 Tomcat Replacement Parts : Drive Track 001-0580* 3201 DRIVE TRACK (EACH)
 Replacement For: Aqua Products P/N: 3201
Drive Track - No tabs - Our Recommendation.
We Recommend To Replace
 Drive Tracks In Pairs.
TOMCAT® REPLACEMENT PART		 $17.99
Quantity:
16 Tomcat Replacement Parts : Drive Track 001-0583* 3201 DRIVE TRACK (EACH) (BLUE)
 Replacement For: Aqua Products P/N: 3201
 Drive Track - No tabs - Our Recommendation.
We Recommend To Replace
 Drive Tracks In Pairs.
TOMCAT® REPLACEMENT PART		 $17.99
Quantity:
16 Tomcat Replacement Parts : Drive Track 001-0586* 3201 DRIVE TRACK (EACH) (BLACK)
 Replacement For: Aqua Products P/N: 3201
 Drive Track - No tabs - Our Recommendation.
We Recommend To Replace
 Drive Tracks In Pairs.
TOMCAT® REPLACEMENT PART		 $17.99
Quantity:

17

   023-2530 2036BL COVER, AB ROUND BODY $21.87
Quantity:

18

   023-0430 2302 SCREW, MOTOR $1.16
Quantity:

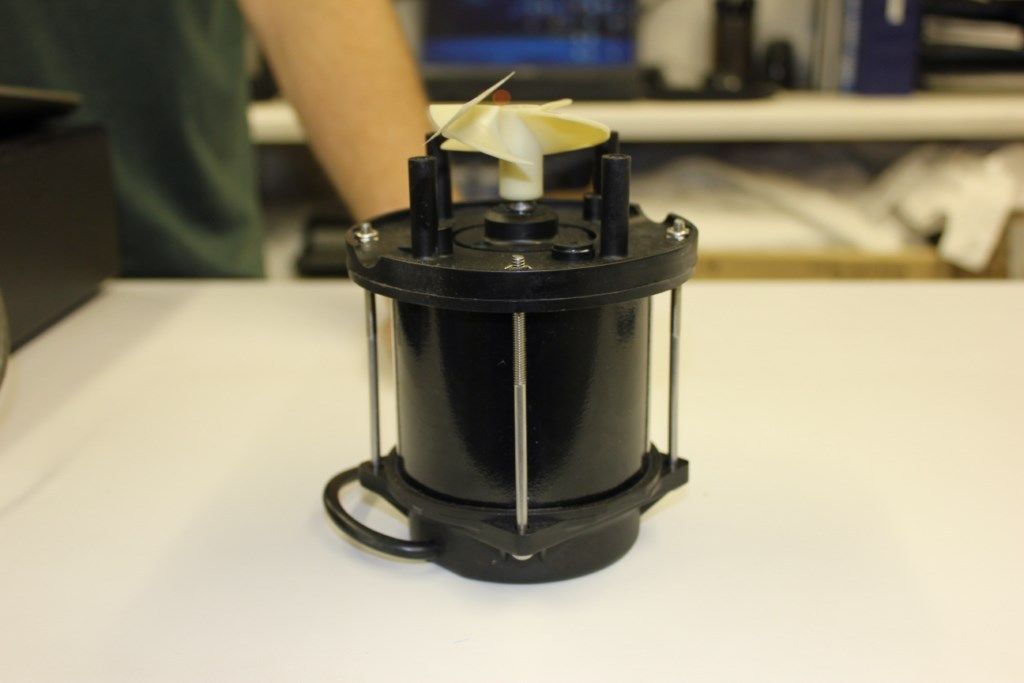

19   001-8020* SA69001 / SA69006
SA69007 / SA69008
SA69011 / SA69012
SA69017 / SA69031
A6034
(FORMERLY A6001A, A6001T,
A6005, A6009, A6010U, A6011,
A6020, A6023, A6023T & A6073)		 PUMP MOTOR, UNIVERSAL
Replacement For: Aqua Products P/N:
SA69001, SA69006, SA69007, SA69008, SA69011,
SA69012, SA69017, SA69031 & A6034
(2 YEAR WARRANTY)
TOMCAT® REPLACEMENT PART		 $
Quantity:
20   023-0470 2500 SCREW, DRIVE MOTOR $1.16
Quantity:

21

   023-0400 2260 SCREW, OUTLET TOP, H-FLOAT
OR SIDE PLATE 		$1.16
Quantity:
22   023-2540 2037BL OUTLET TOP, AB ROUND BODY $9.13
Quantity:

23

   023-0010 1105 SCREW, HANDLE
BRACKET ASSEMBLY		 $1.16
Quantity:
24   023-1000 3402 LOCK NUT, SIDE PLATE $1.10
Quantity:

25

   001-1370* S5310 FILTER SCREEN
Replacement For: Aqua Products P/N: S5310
TOMCAT® REPLACEMENT PART		 $
Quantity:
26   023-1330 5309 STRING, FOR 5310 $0.76
Quantity:
27   001-1380* A9600BL BOTTOM LID ASSEMBLY w/WHEELS
Replacement For: Aqua Products P/N: A9600BL
This lid may resolve the problem of the
pool cleaner getting stuck on the
bottom main drain grate.
However, if the pool cleaner still gets stuck on
the main drain then we recommend to purchase
the Polaris® UniBridge® / UniCover®
 P/N: 5820 listed above.
 TOMCAT® REPLACEMENT PART		 $
Quantity:
27   001-1390* N/A WHEELS FOR BOTTOM LID ASSEMBLY
NOT OFFERED BY AQUA PRODUCTS.
TOMCAT® REPLACEMENT PART		 $
Quantity:
28   023-0070 1602 FLOAT, CABLE $3.29
Quantity:

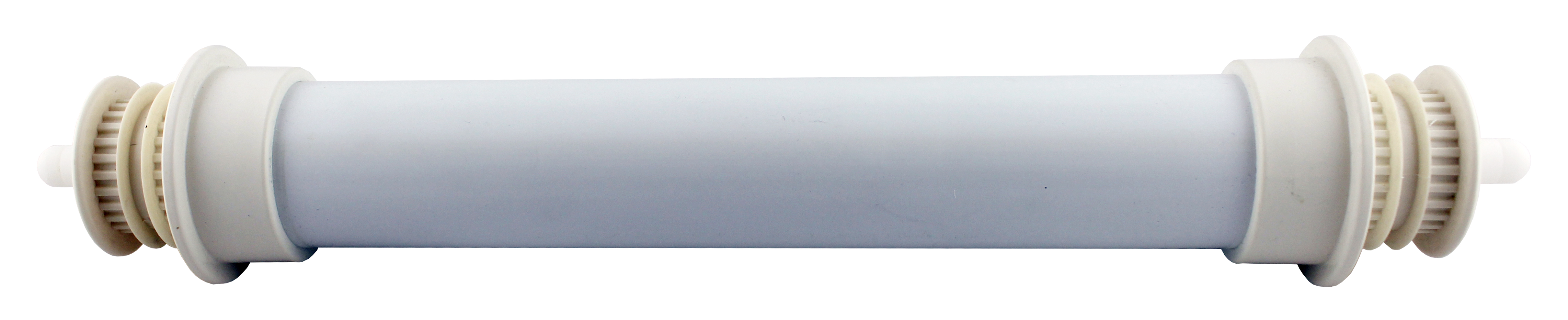

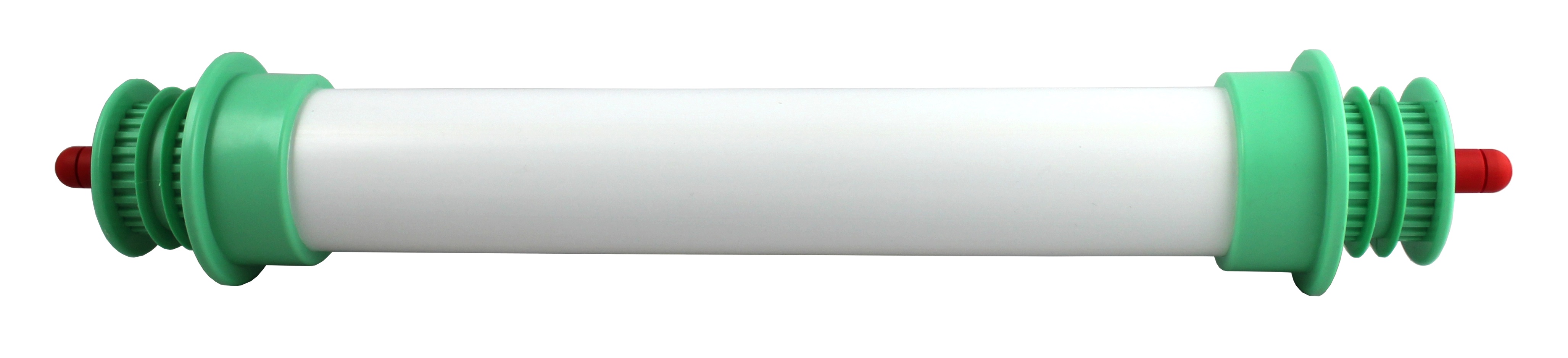

29 Tomcat Replacement Parts : Wheel Tube Assembly 001-0860* A38205MG WHEEL TUBE ASSEMBLY (GREEN)
Replacement For: Aqua Products P/N: A38205MG
TOMCAT® REPLACEMENT PART		 $60.00
Quantity:
29 Tomcat Replacement Parts : Wheel Tube Assembly 001-0869* A38205MG WHEEL TUBE ASSEMBLY (WHITE)
Replacement For: Aqua Products P/N: A38205MG
TOMCAT® REPLACEMENT PART		 $60.00
Quantity:

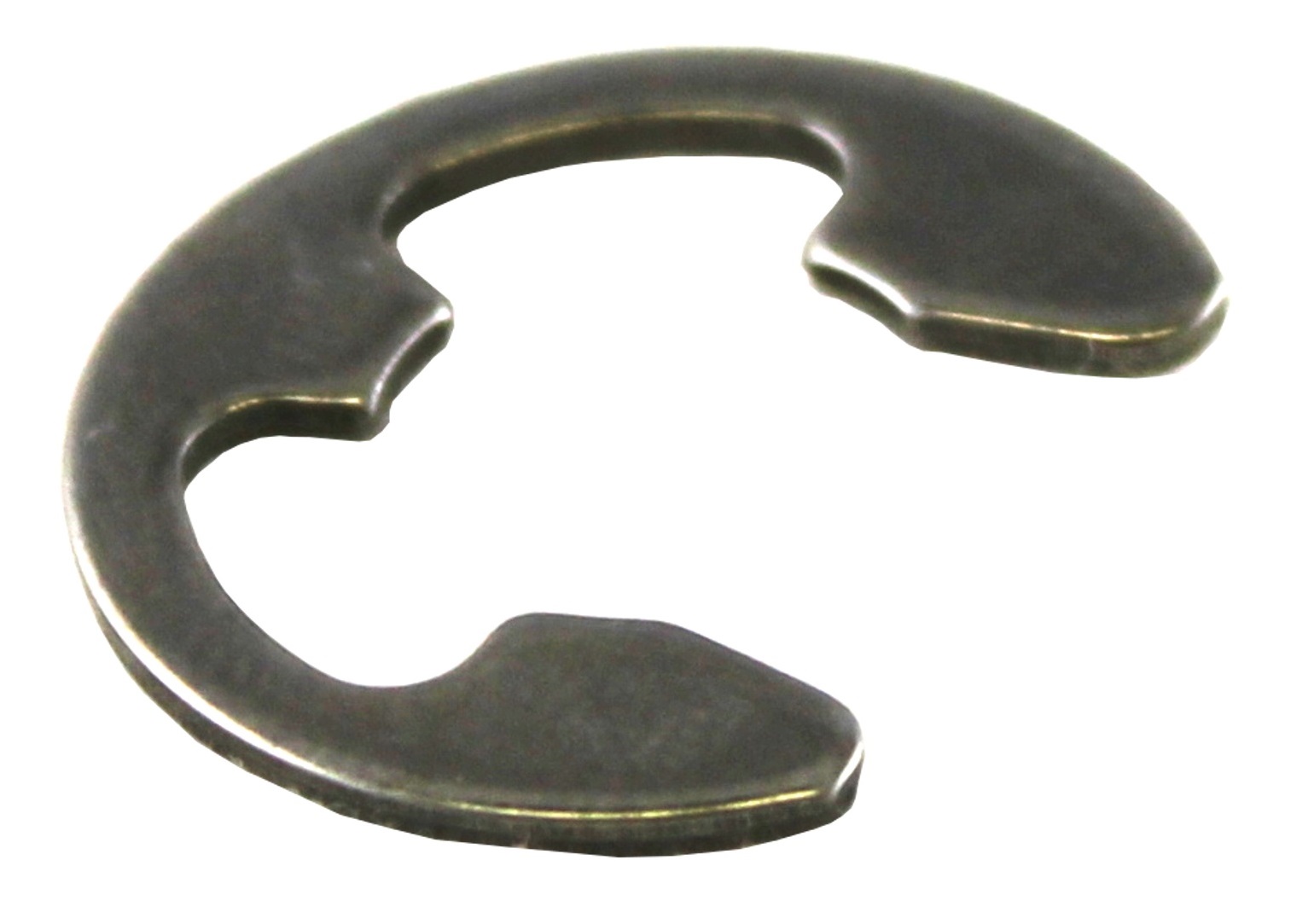

30 Tomcat Replacement Parts : Retaining Ring 001-0020* 11059 USE # 11058 RETAINING RING
Replacement For: Aqua Products P/N: 11058
TOMCAT® REPLACEMENT PART		 $2.50
Quantity:

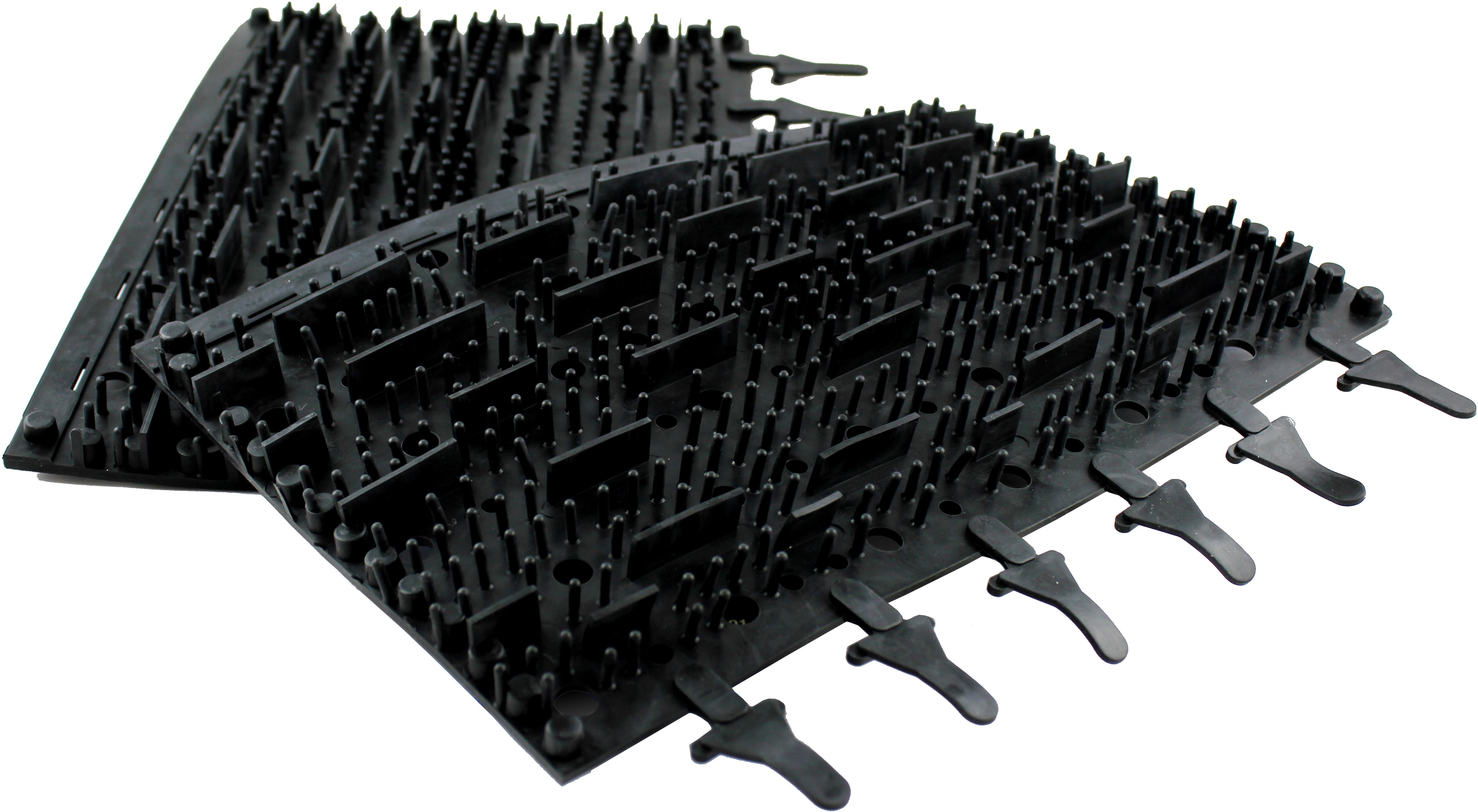

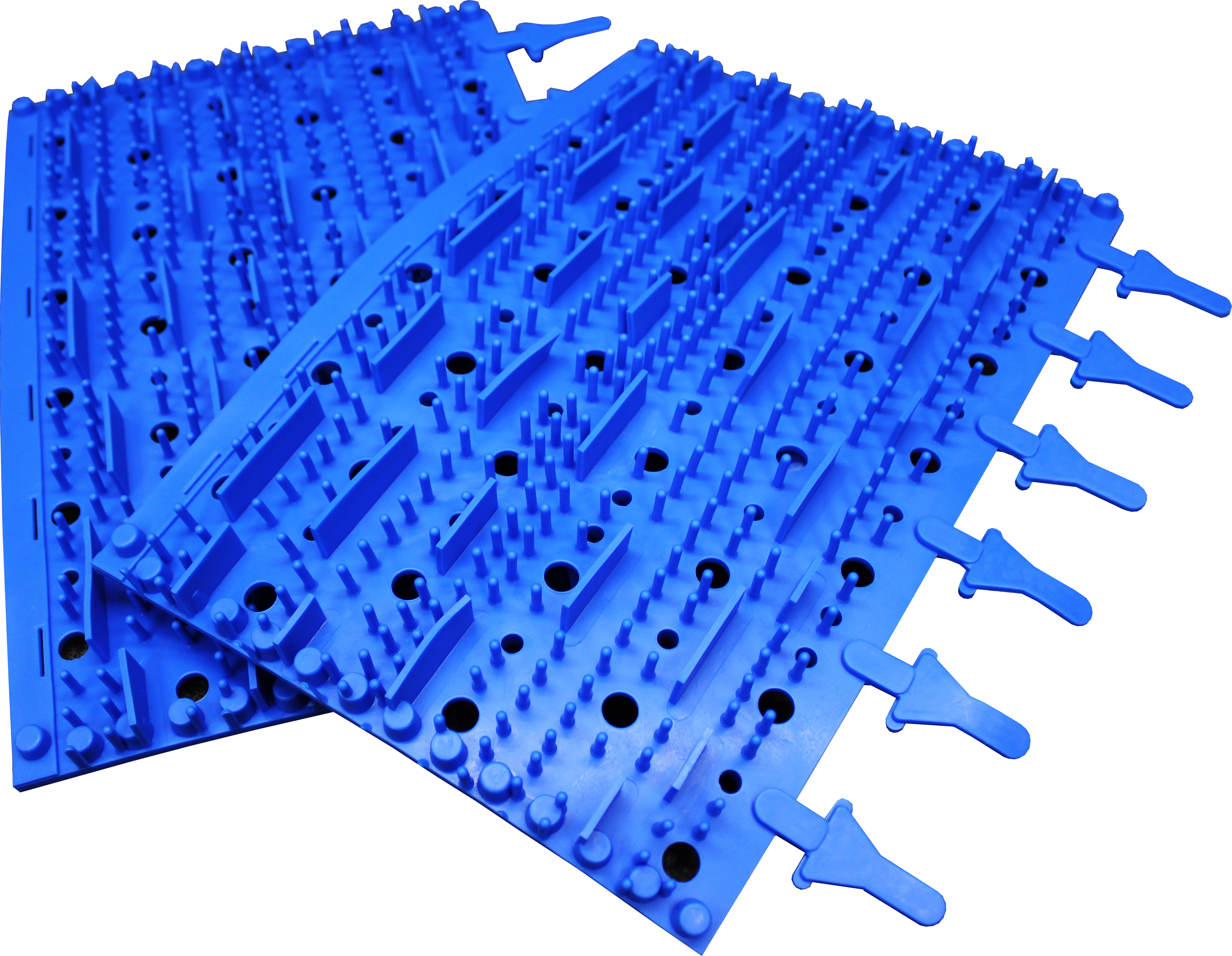

31 Tomcat Replacement Parts : Rubber Brushes 001-0440* 3002B BRUSHES, RUBBER (PAIR)
Replacement For: Aqua Products P/N: SK3016BL
TOMCAT® REPLACEMENT PART		 $59.99
Quantity:
31 Tomcat Replacement Parts : Rubber Brushes 001-0443* 3002B BRUSHES, RUBBER (PAIR) (BLUE)
Replacement For: Aqua Products P/N:3002B
TOMCAT® REPLACEMENT PART		 $59.99
Quantity:
31 Tomcat Replacement Parts : Rubber Brushes 001-0446* 3002B BRUSHES, RUBBER (PAIR) (BLACK)
Replacement For: Aqua Products P/N:3002B
TOMCAT® REPLACEMENT PART		 $59.99
Quantity:
32   023-0800 3021 PIN, SS, 12", FOR EZ BRUSH $4.21
Quantity:
33   023-2400 102BL HANDLE, SIDE, BLUE $31.89
Quantity:
34   023-2740 2503ST PIGTAIL, NYLON FLEX $6.40
Quantity:
36   023-1260 4709 GROOVED PIN COVER $2.53
Quantity:
37   023-0860 3116 FLOAT, UNDER MOTOR, RND BOX $2.62
Quantity:
38   023-1070 3477 BRACKET, FLOAT $2.23
Quantity:
39   023-0840 3109 FLOAT, INSIDE BODY $3.29
Quantity:
41   023-5650 SA89003
(FORMERLY A8512)		 DRIVE MOTOR
(6 MONTH WARRANTY)		 $277.66
Quantity:
43 Tomcat Replacement Parts : Fine Filter Bag 001-1140* 8100 NEW # 8111 FINE FILTER BAG
Replacement For: Aqua Products P/N: 8111
 SUPER 2 MICRON FINE BAG.
VACUUMS DEAD ALGAE, SAND & SILT.
TOMCAT® REPLACEMENT PART		 $34.99
Quantity:
43 Tomcat Replacement Parts : Fine Filter Bag 001-1149* 8100 NEW # 8111 FINE FILTER BAG (WHITE)
Replacement For: Aqua Products P/N: 8111
 SUPER 2 MICRON FINE BAG.
VACUUMS DEAD ALGAE, SAND & SILT.
TOMCAT® REPLACEMENT PART		 $34.99
Quantity:
43 Tomcat Replacement Parts : Mesh Filter Bag 001-1200* 8200 NEW # 8112 MESH FILTER BAG
Replacement For: Aqua Products P/N: 8112
 HIGH WATER FLOW MESH BAG.
VACUUMS LEAVES FAST.
 TOMCAT® REPLACEMENT PART		 $29.99
Quantity:
43 Tomcat Replacement Parts : Mesh Filter Bag 001-1209* 8200 NEW # 8112 MESH FILTER BAG (WHITE)
Replacement For: Aqua Products P/N: 8112
 HIGH WATER FLOW MESH BAG.
VACUUMS LEAVES FAST.
 TOMCAT® REPLACEMENT PART		 $29.99
Quantity:

44

 001-0190*

S1625001

 52' CABLE ASSEMBLY w/MALE PLUG
(BLUE / GREEN)
Replacement for Aqua Products P/N: S1625001
 (STANDARD REPLACEMENT)
TOMCAT® REPLACEMENT PART		 $125.00
Quantity:

44

 001-0192*

S1625001

 52' CABLE ASSEMBLY w/MALE PLUG
(BLACK)
Replacement For: Aqua Products P/N: S1625001
 (STANDARD REPLACEMENT)
TOMCAT® REPLACEMENT PART		 $125.00
Quantity:
  Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Arrow Tie 001-0040 N/A #4 ARROW TIE, REUSABLE
 NOT OFFERED BY AQUA PRODUCTS.
We Recommend To Use 2 Per Cable.
 KEEP YOUR CABLE ASSEMBLY
  NEAT & ORGANIZED!
 TOMCAT® REPLACEMENT PART		 $1.00
Quantity:
      7060C
(DISCONTINUED)		 POWER SUPPLY, w/o TIMER
(DISCONTINUED)
USE POWER SUPPLY BELOW: 7060D
45   023-3160 7060D
(FORMERLY 7060C & 7063C)		 POWER SUPPLY w/o TIMER
This Power Supply Requires You To Have A 2-Pin
Male Plug On The End Of Your Floating Cable.
Please Refer To Item #47 Below.
Aquaquality P/N: 001-0075
Aqua Products P/N: 1615C 		$169.03
Quantity:
47 Tomcat Replacement Parts : Plug 3-Pin Male 001-0075* 1615C PLUG, 3-PIN, MALE
Replacement For: Aqua Products P/N: 1615C
This Plug Is The Replacement For The 2-Pin
Configuration, Just Remove The 3rd Pin.
(NEW STYLE)
 TOMCAT® REPLACEMENT PART		 $12.00
Quantity:
47 001-0080* 1601 PLUG, 3-PIN, FEMALE
Replacement For: Aqua Products P/N: 1601
(OLD STYLE)
TOMCAT® REPLACEMENT PART		 $12.00
Quantity:
46 Tomcat Replacement Parts : Socket 3-Pin Female 001-1055* 7220C SOCKET, 3-PIN, FEMALE
Replacement For: Aqua Products P/N: 7220C
This Socket Is The Replacement For
The 2-Pin Configuration.
 This Part Is ONLY The Socket.
It Is Not Complete With Door Flap.
(NEW STYLE)
TOMCAT® REPLACEMENT PART		 $8.00
Quantity:
48 Tomcat Replacement Parts : Socket 3-Pin Male 250 Faston 001-1060* 7108 SOCKET, 3-PIN, MALE
(.250" FASTON)
Replacement For: Aqua Products P/N: 7108
(OLD STYLE)
TOMCAT® REPLACEMENT PART		 $8.00
Quantity:
48 Tomcat Replacement Parts : Socket 3-Pin Male 187 Faston 001-1080* 7108 SOCKET, 3-PIN, MALE
(.187" FASTON)
 Replacement For: Aqua Products P/N: 7108
(OLD STYLE)
TOMCAT® REPLACEMENT PART		 $8.00
Quantity:
50   023-3130 7041A HANDLE, RUBBER
w/HOLDERS & HARDWARE		 $5.70
Quantity:
51 Tomcat Replacement Parts : Cord for Power Supply 007-505* 7102 CORD FOR POWER SUPPLY
Replacement For: Aqua Products P/N: 7102
TOMCAT® REPLACEMENT PART		 $10.00
Quantity:
52   023-0360 2117 STRAIN RELIEF, POWER SUPPLY $7.45
Quantity:
53 Tomcat Replacement Parts : Fuse Mini 001-1020* 7207 FUSE, MINI, RESIDENTIAL
Replacement For: Aqua Products P/N: 7207
TOMCAT® REPLACEMENT PART		 $1.25
Quantity:
54 Tomcat Replacement Parts : Fuse Holder Push & Turn 001-0980* 7005 FUSE HOLDER, PUSH & TURN
Replacement For: Aqua Products P/N: 7005
TOMCAT® REPLACEMENT PART		 $7.00
Quantity:
55   023-0600 2666 LEG FOR POWER SUPPLY $2.38
Quantity:
56 Parts & Repairs - Lighted Switch 023-1750 7208 SWITCH, NO LIGHT, THIN
(1.25" LONG X .5" WIDE)		 $7.47
Quantity:

*These TOMCAT® Parts Are Manufactured By Aquaquality Pools & Spas, inc. And Are Not Made By Aqua Products, inc.
 TOMCAT® Parts Are Lower Priced For Valued Savings Combined With High Quality!!

1.) Click the picture below to view the
manufacturers exploded view drawing and find
the image # of the parts you are looking for.
2.) Navigate back to Aquaquality Pools
and scroll down to order parts.

-Third Party Link Disclaimer-
By accessing the link above you will be leaving Aquaquality's website
and entering a website hosted by another party.

Aqua Products Automatic Pool Cleaner
Parts For:

Aquabot® Xtreme

 ↑ Scroll Up To Order Parts. ↑
Most Parts In Stock.
Ready For Immediate Shipment!
Lowest Prices & Express Shipping!

Technical Support
Call Toll Free 1-866-876-8643
Technical Support



Factory Original Parts:

ITEM #


AQUAQUALITY P/N

AQUA PRODUCTS P/N

DESCRIPTION

PRICE

BUY NOW
  Keep Your Pool Cleaner From Getting Stuck On Your Pools Main Drain With The Polaris Unibridge Unicover

More Info		 002-020 5820 Polaris® UniBridge® / UniCover®
Does Your Pool Cleaner Get Stuck
On The Bottom Main Drain?
Just Place The Polaris® UniBridge® / UniCover®
On Top Of The Anti-Vortex Main Drain Grate.
The Pool Cleaner Will Now Cross Over Effortlessly!!
THIS IS OUR RECOMMENDATION!		 $69.99
Quantity:
1   023-4970 S2033SV-4H BODY ASSEMBLY $132.76
Quantity:
2   023-2550 2038BL SIDE PLATE, ROUND $36.58
Quantity:

3

   023-0630 2700 SCREW, SIDE PLATE
 		 $1.16
Quantity:
4 Tomcat Replacement Parts & Repairs - Blue Diamond Pool Cleaner Parts & Repairs - Lock Tabs 023-3450 9204BL LOCK TABS (PAIR)
REPLACING LOCK TABS WILL KEEP
 THE BOTTOM LID ASSEMBLY
 SECURE INSIDE THE MACHINE! 		$3.30
Quantity:
5   023-0440 2303 SCREW, LOCK TAB $1.16
Quantity:
6   023-1680 7133 NUT, LOCK TAB $0.76
Quantity:
7   023-2940 3387BL BRACKET, PW NOZZLE SUPPORT $10.26
Quantity:
8 Bushing Side Plate 023-0500 2600 BUSHING, SIDE PLATE
We Recommend To Replace
Side Plate Bushings
With A Complete Set of 6.		 $2.53
Quantity:
9 Parts & Repairs - Bushing Pin Support 023-0540 2610 BUSHING, PIN SUPPORT $4.26
Quantity:
10 Drive Pulley Medium 023-4260 A3605 PULLEY ASSEMBLY, MEDIUM $30.94
Quantity:
11 Washer for Drive Pulley 023-1140 3607 WASHER, DRIVE PULLEY $5.33
Quantity:
12 Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Stepped Sleeve Roller 023-1110 3506 STEPPED SLEEVE ROLLER
We Recommend To Replace
 Stepped Sleeve Roller In Pairs.		 $2.53
Quantity:
13 Washer for Wheel Tube 023-1130 3603 WASHER, WHEEL TUBE $1.16
Quantity:
14 Parts & Repairs - Drive Belts (Pair) 023-0910 3302 DRIVE BELTS (PAIR) $15.90
Quantity:
15 Large Roller 023-1160 3700 LARGE ROLLER $3.29
Quantity:
16 Parts & Repairs - Drive Track Model G 023-0900 3203 DRIVE TRACK w/TABS (EACH)
We Recommend To Replace
 Drive Tracks w/Tabs In Pairs.		 $20.35
Quantity:

17

   023-2530 2036BL COVER, AB ROUND BODY
 		 $21.87
Quantity:

18

   023-0430 2302 SCREW, MOTOR $1.16
Quantity:
19 Pump Motor For Pool Rover - Pump Motor For Above Ground Cleaners 023-5510 SA69001
(FORMERLY A6005)		 PUMP MOTOR
(6 MONTH WARRANTY)		 $162.76
Quantity:
20   023-0470 2500 SCREW, DRIVE MOTOR $1.16
Quantity:

21

   023-0400 2260 SCREW, OUTLET TOP, H-FLOAT
OR SIDE PLATE 		$1.16
Quantity:
22   023-2540 2037BL OUTLET TOP, AB ROUND BODY $9.13
Quantity:

23

   023-0010 1105 SCREW, HANDLE
BRACKET ASSEMBLY		 $1.16
Quantity:
24   023-1000 3402 LOCK NUT, SIDE PLATE $1.10
Quantity:

25

   023-5380 S5310 FILTER SCREEN, MOD. 4 POD BODY $31.18
Quantity:
26   023-1330 5309 STRING, FOR 5310 $0.76
Quantity:
27 023-4760 A9600BL BOTTOM LID ASSEMBLY w/WHEELS
This lid may resolve the problem of the
pool cleaner getting stuck on the
bottom main drain grate.
However, if the pool cleaner still gets stuck on
the main drain then we recommend to purchase
the Polaris® UniBridge® / UniCover®
 P/N: 5820 listed above.		 $90.59
Quantity:
28   023-0070 1602 FLOAT, CABLE $3.29
Quantity:
29 Tomcat Replacement Parts & Repairs - Tomcat Replacement Parts & Repairs - Wheel Tube Assembly 023-4400 A38205MG WHEEL TUBE ASSEMBLY $64.00
Quantity:
30 Tomcat Replacement Parts : Retaining Ring 023-2060 11059 USE # 11058 RETAINING RING $3.36
Quantity:
31   023-6000 SK3016BL SK BRUSHES, RUBBER EZ 12" (PAIR) $71.27
Quantity:
32   023-0800 3021 PIN, SS, 12", FOR EZ BRUSH $4.21
Quantity:
33   023-2400 102BL HANDLE, SIDE, BLUE $31.89
Quantity:
34   023-2740 2503ST PIGTAIL, NYLON FLEX $6.40
Quantity:
36   023-1260 4709 GROOVED PIN COVER $2.53
Quantity:
37   023-0860 3116 FLOAT, UNDER MOTOR, RND BOX $2.62
Quantity:
38   023-1070 3477 BRACKET, FLOAT $2.23
Quantity:
39   023-0840 3109 FLOAT, INSIDE BODY $3.29
Quantity:
40   023-3160 7060D POWER SUPPLY $169.03
Quantity:
41   023-5650 SA89003
(FORMERLY A8512)		 DRIVE MOTOR
(6 MONTH WARRANTY)		 $277.66
Quantity:
43 Aquabot Fine Filter Bag 023-1820 8100 NEW # 8111 FINE FILTER BAG
SUPER 2 MICRON FINE BAG.
VACUUMS DEAD ALGAE, SAND & SILT. 		$44.81
Quantity:
43 Aquabot Mesh Filter Bag 023-1830 8200 NEW # 8112 MESH FILTER BAG
 HIGH WATER FLOW MESH BAG.
VACUUMS LEAVES FAST.
 		 $42.78
Quantity:
44 Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Cable Assembly 023-3770 A16252 52' CABLE ASSEMBLY $219.58
Quantity:
44 Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Cable Assembly 023-3750 A1625001 50' CABLE ASSEMBLY $219.58
Quantity:
      7060C
(DISCONTINUED)		 POWER SUPPLY, w/o TIMER
(DISCONTINUED)
USE POWER SUPPLY BELOW: 7060D
45   023-3160 7060D
(FORMERLY 7060C & 7063C)		 POWER SUPPLY w/o TIMER
This Power Supply Requires You To Have A 2-Pin
Male Plug On The End Of Your Floating Cable.
Please Refer To Item #46 Below.
Aqua Products P/N: 1615C		 $169.03
Quantity:
46   023-2420 1615C PLUG, 2-PIN, MALE
(NEW STYLE)		 $13.39
Quantity:
47 Tomcat Replacement Parts & Repairs - Tomcat Replacement Aquabot Turbo Parts & Repairs - 3-Pin Plug Female 023-0060 1601 PLUG, 3-PIN, FEMALE
(OLD STYLE)		 $12.81
Quantity:
48 Parts & Repairs - 3-Pin Socket Male 023-1620 7108 SOCKET, 3-PIN, MALE
(OLD STYLE)		 $9.60
Quantity:
49   023-3370 7220C SOCKET, 2-PRONG, COMPLETE
(NEW STYLE)		 $13.71
Quantity:
50   023-3130 7041A HANDLE, RUBBER
w/HOLDERS & HARDWARE		 $5.70
Quantity:
51 Parts & Repairs - Cord for Power Supply 023-1580 7102 CORD FOR POWER SUPPLY $10.67
Quantity:
52   023-0360 2117 STRAIN RELIEF, POWER SUPPLY $7.45
Quantity:
53   023-1740 7207 FUSE, MINI, RESIDENTIAL $2.81
Quantity:
54 Tomcat Replacement Parts & Repairs - Tomcat Replacement Parts & Repairs - Fuse Holder Push & Turn 023-1470 7005 FUSE HOLDER, PUSH & TURN $7.45
Quantity:
55   023-0600 2666 LEG FOR POWER SUPPLY $2.38
Quantity:
56 Parts & Repairs - Lighted Switch 023-1750 7208 SWITCH, NO LIGHT, THIN
(1.25" LONG X .5" WIDE)		 $7.47
Quantity:



1.) Click the picture below to view the
manufacturers exploded view drawing and find
the image # of the parts you are looking for.
2.) Navigate back to Aquaquality Pools
and scroll down to order parts.

-Third Party Link Disclaimer-
By accessing the link above you will be leaving Aquaquality's website
and entering a website hosted by another party.

Aqua Products Automatic Pool Cleaner
Parts For:

Aquabot® Xtreme

 ↑ Scroll Up To Order Parts. ↑
Most Parts In Stock.
Ready For Immediate Shipment!
Lowest Prices & Express Shipping!

Technical Support
Call Toll Free 1-866-876-8643
Technical Support



Visit Our Showroom for Pool & Spa Supplies, Chemicals & Accessories at:
Aquaquality Pools & Spas, inc.
169 Post Avenue • Westbury, NY 11590-3457 • Nassau County • Long Island • New York

© 2016 Aquaquality Pools & Spas, inc., all rights reserved. Text, graphics, and HTML code on this entire website are protected by US and International  Copyright Laws, and may not be copied, reprinted, published, translated, hosted, or otherwise distributed by any means without explicit written permission.
