Aqua Products Automatic Pool Cleaner
Parts For:

Duramax Junior HT Parts

 ↓ Scroll Down To Order Parts. ↓
Most Parts In Stock.
Ready For Immediate Shipment!
Lowest Prices & Express Shipping!

Technical Support
Call Toll Free 1-866-876-8643
Technical Support

We Sell Both Factory Original & TOMCAT® High Quality Discount Replacement Parts.

*These TOMCAT® Parts Are Manufactured By Aquaquality Pools & Spas, inc. And Are Not Made By Aqua Products, inc.
 TOMCAT® Parts Are Lower Priced For Valued Savings Combined With High Quality!!

ITEM #


AQUAQUALITY P/N

AQUA PRODUCTS P/N

DESCRIPTION

PRICE

BUY NOW
  Tomcat Replacement Parts : Drive Belts (Pair) 001-0600* 3302 Just Need A Pair Of Drive Belts?
 DRIVE BELTS (PAIR)
 Replacement For: Aqua Products P/N: 3302
Belts & U.S. Mail (Also: HI, AK, PR)
TOMCAT® REPLACEMENT PART		 $19.99
Quantity:

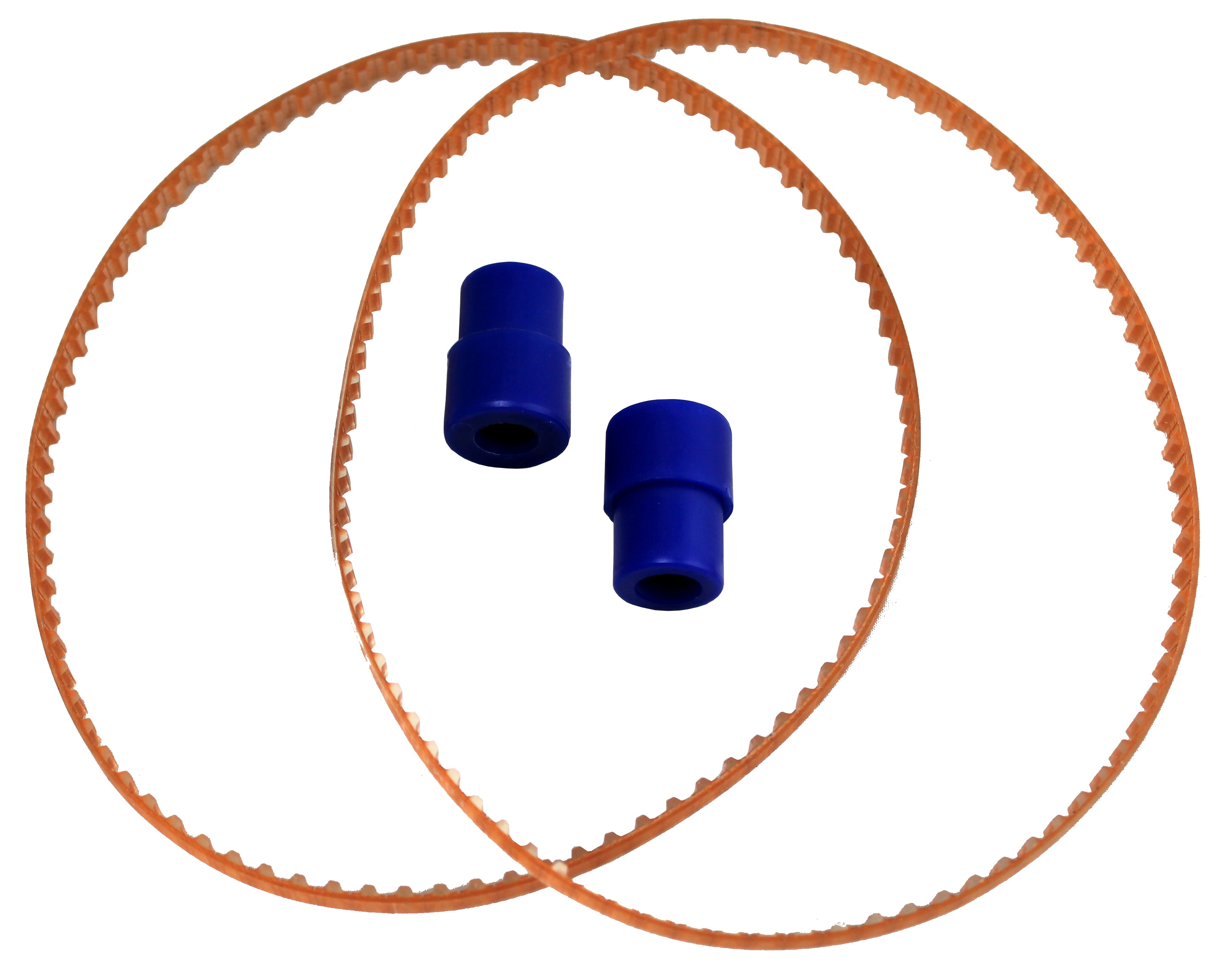

  Tomcat Replacement Parts : Drive Belt Kit 010-700* 3302, 3506 DRIVE BELT KIT
 NOT OFFERED BY AQUA PRODUCTS.
 Replacement For:
 Aqua Products P/N: 3302, 3506
 includes 2 Stepped Sleeve Rollers,
 To Properly Tighten Drive Belts.
 THIS IS OUR RECOMMENDATION!
 TOMCAT® REPLACEMENT PART		 $19.99
Quantity:
  Tomcat Replacement Parts : Filter Bags 010-XXX* 8100 NEW # 8111
&
8200 NEW # 8112		 FILTER BAG SPECIAL (20 Pack)
 NOT OFFERED BY AQUA PRODUCTS.
 Replacement For: Aqua Products P/N:
8100 NEW # 8111 & 8200 NEW # 8112
10 Fine Filter Bags
10 Mesh Filter Bags
THIS IS OUR RECOMMENDATION!
TOMCAT® REPLACEMENT PART		 $179.99
Quantity:
  Tomcat Replacement Parts : Filter Bags 010-800* 8100 NEW # 8111
&
8200 NEW # 8112		 FILTER BAG SPECIAL (3 Pack)
 NOT OFFERED BY AQUA PRODUCTS.
 Replacement For: Aqua Products P/N:
8100 NEW # 8111 & 8200 NEW # 8112
2 Fine Filter Bags
1 Mesh Filter Bag
THIS IS OUR RECOMMENDATION!
TOMCAT® REPLACEMENT PART		 $89.99
Quantity:
  Tomcat Replacement Parts : Filter Bags 010-805* 8100 NEW # 8111
&
8200 NEW # 8112		 FILTER BAG SPECIAL (3 Pack)
 NOT OFFERED BY AQUA PRODUCTS.
 Replacement For: Aqua Products P/N:
8100 NEW # 8111 & 8200 NEW # 8112
1 Fine Filter Bag
2 Mesh Filter Bags
THIS IS OUR RECOMMENDATION!
TOMCAT® REPLACEMENT PART		 $59.99
Quantity:
1   023-4920 S2005WBL BODY ASSEMBLY $132.90
Quantity:
2 Tomcat Replacement Parts : Side Plate 001-0620* 3400WT SIDE PLATE w/2 HOLES
Replacement For: Aqua Products P/N: 3400WT
TOMCAT® REPLACEMENT PART		 $20.00
Quantity:

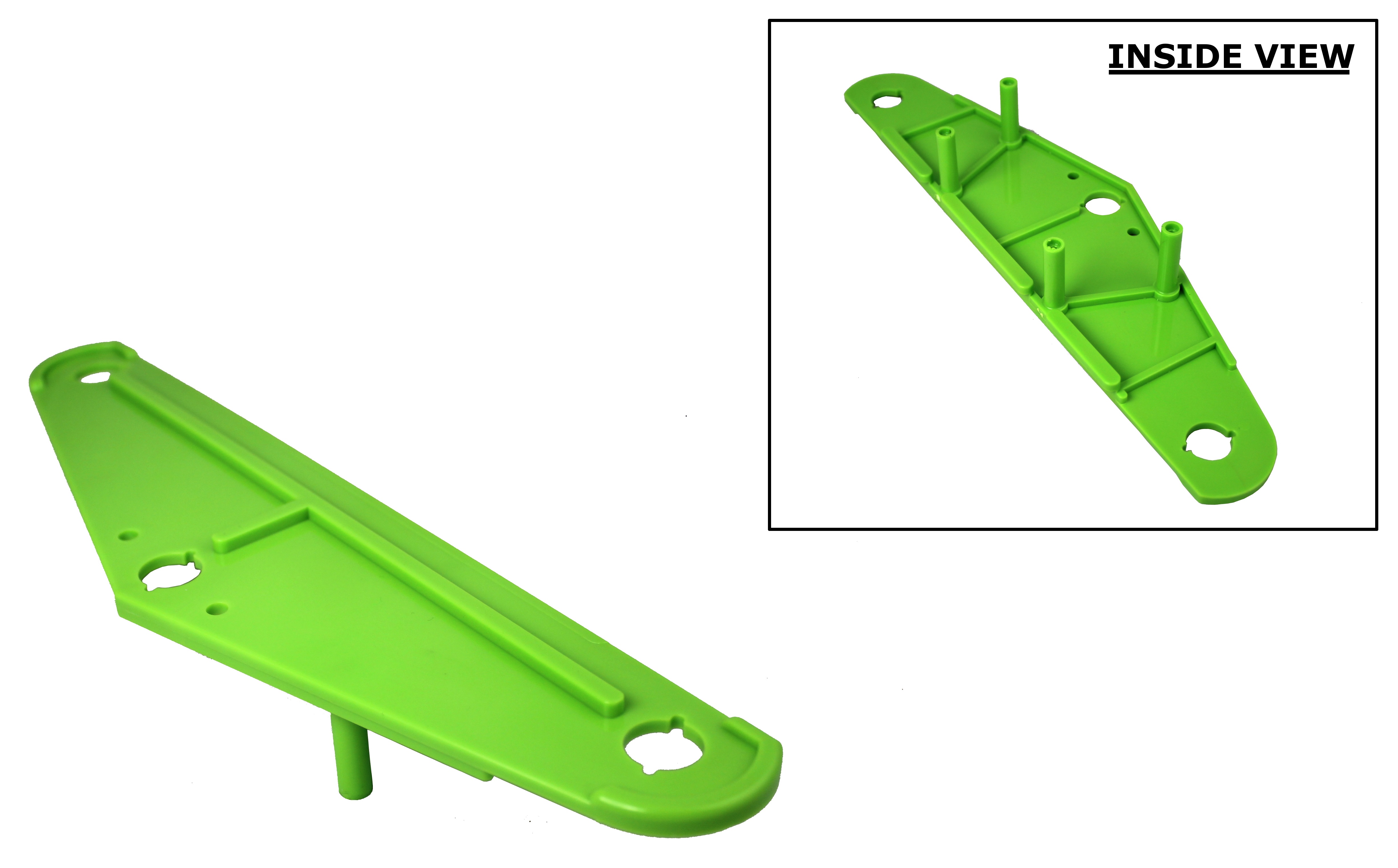

2 Tomcat Replacement Parts : Side Plate 001-0623* 3400B SIDE PLATE w/2 HOLES (BLUE)
Replacement For: Aqua Products P/N: 3400B
TOMCAT® REPLACEMENT PART		 $20.00
Quantity:
2 Tomcat Replacement Parts : Side Plate 001-0626* 3400B SIDE PLATE w/2 HOLES (BLACK)
Replacement For: Aqua Products P/N: 3400B
TOMCAT® REPLACEMENT PART		 $20.00
Quantity:
2 Tomcat Replacement Parts : Side Plate 001-0629* 3400B SIDE PLATE w/2 HOLES (WHITE)
Replacement For: Aqua Products P/N: 3400B
TOMCAT® REPLACEMENT PART		 $20.00
Quantity:
3 Tomcat Replacement Parts : Drive Track 001-0580* 3201 DRIVE TRACK (EACH)
 Replacement For: Aqua Products P/N: 3201
Drive Track - No tabs - Our Recommendation.
We Recommend To Replace
 Drive Tracks In Pairs.
TOMCAT® REPLACEMENT PART		 $17.99
Quantity:
3 Tomcat Replacement Parts : Drive Track 001-0583* 3201 DRIVE TRACK (EACH) (BLUE)
 Replacement For: Aqua Products P/N: 3201
We Recommend To Replace
 Drive Tracks In Pairs.
TOMCAT® REPLACEMENT PART		 $17.99
Quantity:
3 Tomcat Replacement Parts : Drive Track 001-0586* 3201 DRIVE TRACK (EACH) (BLACK)
 Replacement For: Aqua Products P/N: 3201
We Recommend To Replace
 Drive Tracks In Pairs.
TOMCAT® REPLACEMENT PART		 $17.99
Quantity:
4   023-2950 3387WT NOZZLE BRACKET $10.26
Quantity:
5 Tomcat Replacement Parts : Lock Tabs 001-1240* 9204BL LOCK TABS (PAIR)
 Replacement for Aqua Products P/N: 9204BL
REPLACING LOCK TABS WILL KEEP
THE BOTTOM LID ASSEMBLY
SECURE INSIDE THE MACHINE!
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
5 Tomcat Replacement Parts : Lock Tabs 001-1243* 9204BL LOCK TABS (PAIR) (BLUE)
 Replacement for Aqua Products P/N: 9204BL
REPLACING LOCK TABS WILL KEEP
THE BOTTOM LID ASSEMBLY
SECURE INSIDE THE MACHINE!
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
6   023-0440 2303 SCREW, LOCK TAB $1.16
Quantity:
7   023-1680 7133  NUT, LOCK TAB $0.76
Quantity:
8   001-8020* SA69001 / SA69006
SA69007 / SA69008
SA69011 / SA69012
SA69017 / SA69031
A6034
(FORMERLY A6001A, A6001T,
A6005, A6009, A6010U, A6011,
A6020, A6023, A6023T & A6073)		 PUMP MOTOR, UNIVERSAL
Replacement For: Aqua Products P/N:
SA69001, SA69006, SA69007, SA69008, SA69011,
SA69012, SA69017, SA69031 & A6034
(2 YEAR WARRANTY)
TOMCAT® REPLACEMENT PART		 $
Quantity:
9   023-2570 2040WT SWITCH , OVAL HANDLE BRACKET $4.56
Quantity:

10

   023-1290 5087 SPRING $1.16
Quantity:
11   023-1000 3402 LOCK NUT, SIDE PLATE $1.10
Quantity:
12   023-3580 A10004WT HANDLE ASSEMBLY $95.05
Quantity:

13

   005-336 5061 SCREW $1.00
Quantity:
14   023-0040 1110 INSERT $0.77
Quantity:
15   023-2090 11065 WASHER, P-CLIP $1.16
Quantity:
16   023-5820 SA89025
(FORMERLY A8577)		 DRIVE MOTOR
(6 MONTH WARRANTY)		 $449.05
Quantity:
17   023-0630 2700 SCREW, SIDE PLATE
OR P-CLIP,
LARGE HEAD		 $1.16
Quantity:
18
&

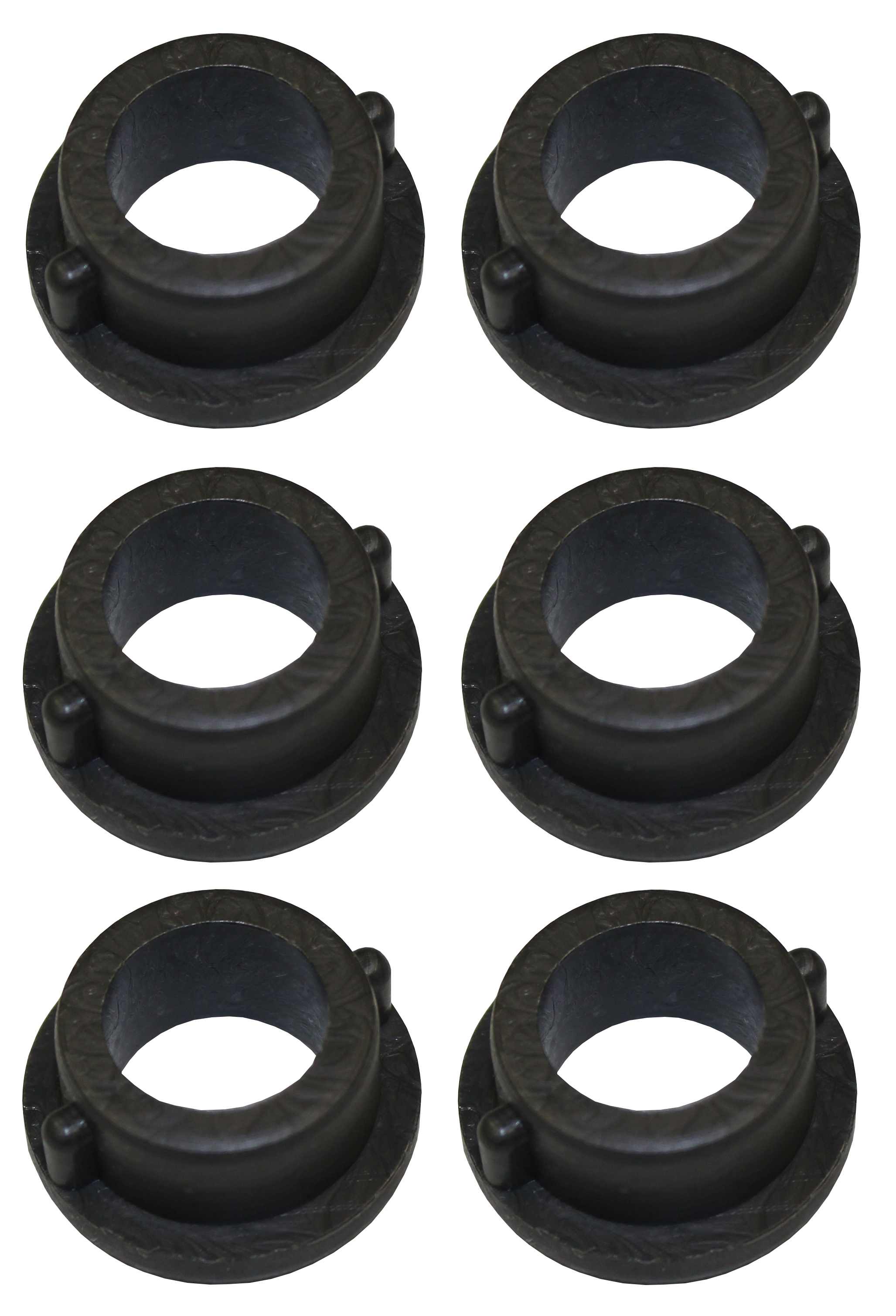

19		 Tomcat Replacement Parts : Side Plate Bushing 001-0400* 2600BKT2 BUSHING, SIDE PLATE
Replacement For: Aqua Products P/N:2600BKT2
BLACK, MOLYBDENUM POLYMER
We Recommend To Replace
Side Plate Bushings
With A Complete Set of 6.
TOMCAT® REPLACEMENT PART		 $2.00
Quantity:
20 Tomcat Replacement Parts : Washer for Drive Pulley 001-0800* 3607 WASHER, DRIVE PULLEY
Replacement For: Aqua Products P/N: 3607
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
20 Tomcat Replacement Parts : Washer for Drive Pulley 001-0809* 3607 WASHER, DRIVE PULLEY (WHITE)
Replacement For: Aqua Products P/N: 3607
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
21 Tomcat Replacement Parts : Medium Pulley Assembly 001-0780* A3605 PULLEY ASSEMBLY, MEDIUM
Replacement For: Aqua Products P/N: A3605
TOMCAT® REPLACEMENT PART		 $25.00
Quantity:
21 Tomcat Replacement Parts : Medium Pulley Assembly 001-0789* A3605 PULLEY ASSEMBLY, MEDIUM (WHITE)
Replacement For: Aqua Products P/N: A3605
TOMCAT® REPLACEMENT PART		 $25.00
Quantity:
22 Tomcat Replacement Parts : Stepped Sleeve Roller 001-0740* 3506 STEPPED SLEEVE ROLLER
Replacement For: Aqua Products P/N: 3506
We Recommend To Replace
 Stepped Sleeve Roller In Pairs.
TOMCAT® REPLACEMENT PART		 $2.50
Quantity:
22 Tomcat Replacement Parts : Stepped Sleeve Roller 001-0746* 3506 STEPPED SLEEVE ROLLER (BLACK)
Replacement For: Aqua Products P/N: 3506
We Recommend To Replace
 Stepped Sleeve Roller In Pairs.
TOMCAT® REPLACEMENT PART		 $2.50
Quantity:
22 Tomcat Replacement Parts : Stepped Sleeve Roller 001-0749* 3506 STEPPED SLEEVE ROLLER (WHITE)
Replacement For: Aqua Products P/N: 3506
We Recommend To Replace
 Stepped Sleeve Roller In Pairs.
TOMCAT® REPLACEMENT PART		 $2.50
Quantity:
23 Tomcat Replacement Parts : Retaining Ring 001-0020* 11059 USE # 11058 RETAINING RING
Replacement For: Aqua Products P/N: 11058
TOMCAT® REPLACEMENT PART		 $2.50
Quantity:
24 Tomcat Replacement Parts : Drive Belts (Pair) 001-0600* 3302 DRIVE BELTS (PAIR)
Replacement For: Aqua Products P/N: 3302
TOMCAT® REPLACEMENT PART		 $14.99
Quantity:
25   023-1310 5301 FILTER SCREEN $31.16
Quantity:

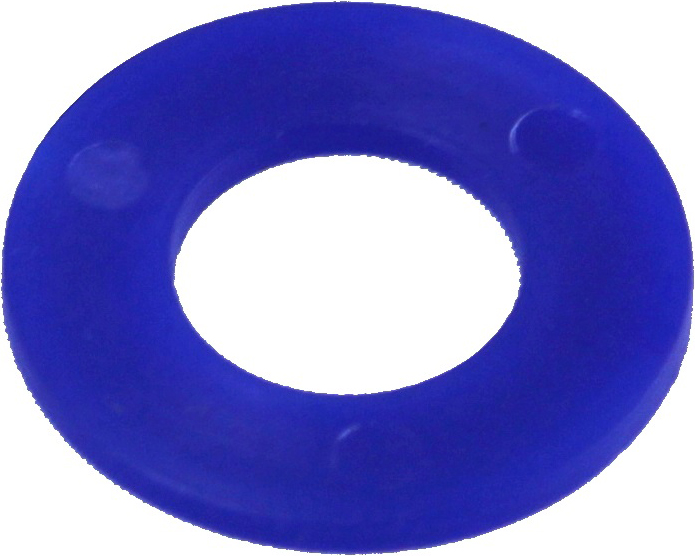

26 Tomcat Replacement Parts : Washer For Wheel Tube 001-0820* 3603 WASHER, WHEEL TUBE
Replacement For: Aqua Products P/N: 3603
TOMCAT® REPLACEMENT PART		 $1.20
Quantity:
26 Tomcat Replacement Parts : Washer For Wheel Tube 001-0826* 3603 WASHER, WHEEL TUBE (BLACK)
Replacement For: Aqua Products P/N: 3603
TOMCAT® REPLACEMENT PART		 $1.20
Quantity:
26 Tomcat Replacement Parts : Washer For Wheel Tube 001-0829* 3603 WASHER, WHEEL TUBE (WHITE)
Replacement For: Aqua Products P/N: 3603
TOMCAT® REPLACEMENT PART		 $1.20
Quantity:
27   023-0810 3101 FLOAT, PLACE UNDER
DRIVE MOTOR		 $1.53
Quantity:
28   023-2720 2250WT OUTLET RING $8.34
Quantity:
29   023-2670 2230WT-1 OUTLET TOP 19.38
Quantity:
30   023-0750 2901 SCREW $1.16
Quantity:

31

   023-0400 2260 SCREW, OUTLET TOP, H-FLOAT
OR SIDE PLATE 		$1.16
Quantity:
32   023-0430 2302 SCREW, MOTOR $1.16
Quantity:
33   023-1330 5309 STRING FOR 5310 $0.76
Quantity:
34 Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - P Clip 001-0340* 2102

P-CLIP, 7/16" PLASTIC
 Replacement For: Aqua Products P/N: 2102
TOMCAT® REPLACEMENT PART

 $1.00
Quantity:
35   001-1380* A9600BL BOTTOM LID ASSEMBLY w/WHEELS
Replacement For: Aqua Products P/N: A9600BL
This lid may resolve the problem of the
pool cleaner getting stuck on the
bottom main drain grate.
However, if the pool cleaner still gets stuck on
the main drain then we recommend to purchase
the Polaris® UniBridge® / UniCover®
 P/N: 5820 listed above.
 TOMCAT® REPLACEMENT PART		 $
Quantity:
35   001-1390* N/A WHEELS FOR BOTTOM LID ASSEMBLY
NOT OFFERED BY AQUA PRODUCTS.
TOMCAT® REPLACEMENT PART		 $
Quantity:

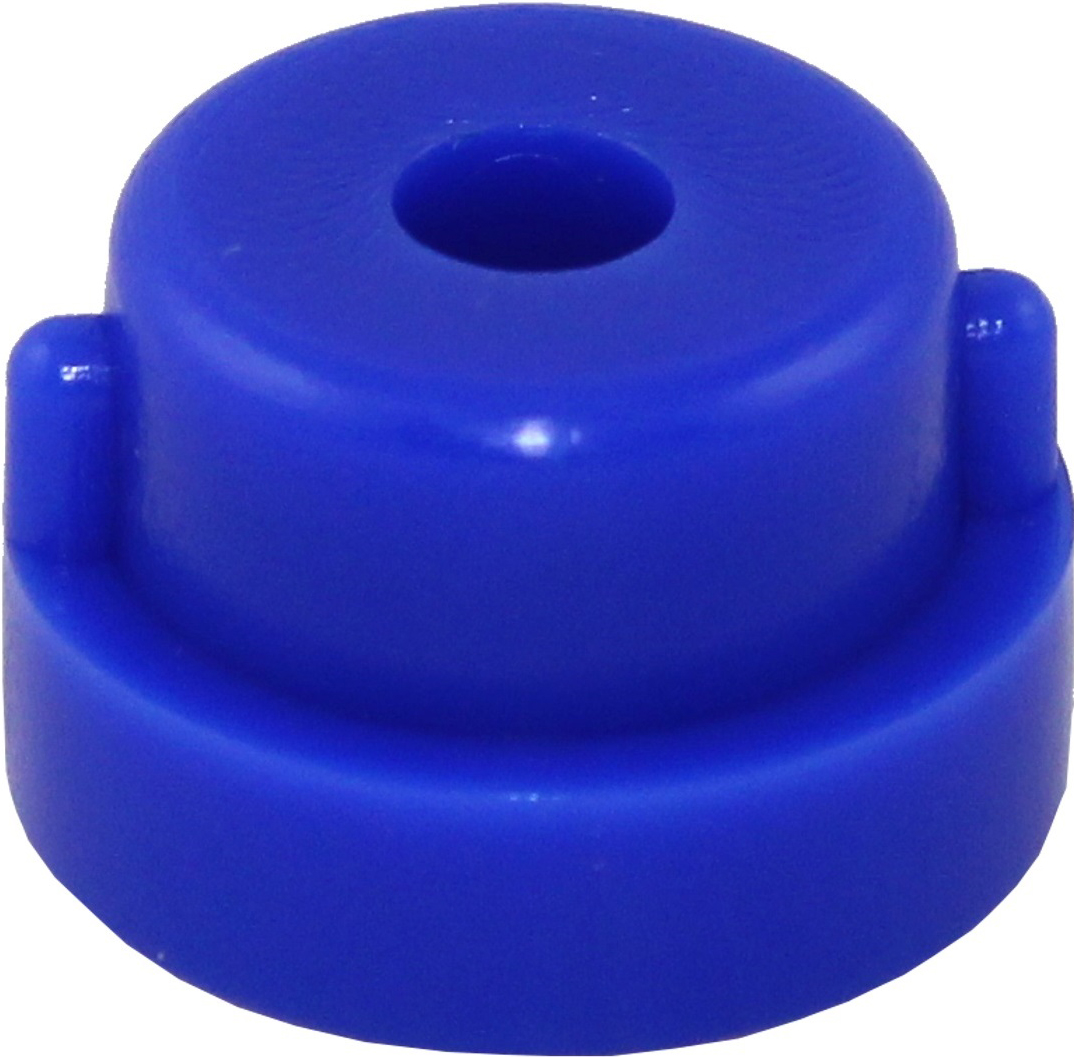

36 Tomcat Replacement Parts : Bushing For Pin Support 001-0420* 2610 BUSHING, PIN SUPPORT
Replacement For: Aqua Products P/N: 2610
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
36   001-0426* 2610 BUSHING, PIN SUPPORT (BLACK)
Replacement For: Aqua Products P/N: 2610
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
36 Tomcat Replacement Parts : Bushing For Pin Support 001-0429* 2610 BUSHING, PIN SUPPORT (WHITE)
Replacement For: Aqua Products P/N: 2610
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
37 Tomcat Replacement Parts : Large Roller 001-0720* 3700 LARGE ROLLER
Replacement For: Aqua Products P/N: 3700
TOMCAT® REPLACEMENT PART		 $3.25
Quantity:
37 Tomcat Replacement Parts : Large Roller 001-0729* 3700 LARGE ROLLER (WHITE)
Replacement For: Aqua Products P/N: 3700
TOMCAT® REPLACEMENT PART		 $3.25
Quantity:
38   023-3350 7184C POWER SUPPLY
This Power Supply Requires You To Have A 2-Pin
Male Plug On The End Of Your Floating Cable.
Please Refer To Item #50 Below
Aquaquality P/N: 001-0075
Aqua Products P/N: 1615C 		$179.11
Quantity:
39   023-0160 1628 GROMMET, 3/8" X 1 3/8" $2.23
Quantity:
40   023-0800 3021 PIN, SS, 12", FOR EZ BRUSH $4.21
Quantity:

41

 001-0240*

A1627501

 75' CABLE ASSEMBLY w/FEMALE PLUG
(BLUE / GREEN)
Replacement for Aqua Products P/N: 1675FM
TOMCAT® REPLACEMENT PART		 $175.00
Quantity:

41

 001-0242*

A1627501

 75' CABLE ASSEMBLY w/FEMALE PLUG
(BLACK)
Replacement For: Aqua Products P/N: A1627501
TOMCAT® REPLACEMENT PART		 $175.00
Quantity:

41

 001-0244*

A1627501

 75' CABLE ASSEMBLY w/MALE PLUG
(BLUE / GREEN)
Replacement for Aqua Products P/N: A1627501
TOMCAT® REPLACEMENT PART		 $175.00
Quantity:

41

 001-0246*

A1627501

 75' CABLE ASSEMBLY w/MALE PLUG
(BLACK)
Replacement For: Aqua Products P/N: A1627501
TOMCAT® REPLACEMENT PART		 $175.00
Quantity:
  Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Arrow Tie 001-0040 N/A #4 ARROW TIE, REUSABLE
 NOT OFFERED BY AQUA PRODUCTS.
We Recommend To Use 2 Per Cable.
 KEEP YOUR CABLE ASSEMBLY
  NEAT & ORGANIZED!
 TOMCAT® REPLACEMENT PART		 $1.00
Quantity:
42   023-4380 A38204 WHEEL TUBE ASSEMBLY $64.00
Quantity:
43   023-2860 3016BL BRUSHES, RUBBER EZ, 12" (2) $71.26
Quantity:
  Tomcat Replacement Parts : Climbing Rings
Tomcat Replacement Parts : Wheel Tube Assembly : Climbing Rings : Brush, Rubber		 001-0480* SP3007 CLIMBING RINGS, PVA (SET OF 4)
Replacement For: Aqua Products P/N: SP3007
 Help Pool Cleaner Wall Climbing & Traction
Especially On Slippery Surfaces By Adding
Climbing Rings, PVA Over The Brushes, Rubber.
TOMCAT® REPLACEMENT PART		 $19.99
Quantity:
44   023-1260 4709 GROOVED PIN COVER $2.53
Quantity:
45 Tomcat Replacement Parts : Fine Filter Bag 001-1140* 8100 NEW # 8111 FINE FILTER BAG
Replacement For: Aqua Products P/N: 8111
 SUPER 2 MICRON FINE BAG.
VACUUMS DEAD ALGAE, SAND & SILT.
TOMCAT® REPLACEMENT PART		 $34.99
Quantity:
45 Tomcat Replacement Parts : Fine Filter Bag 001-1149* 8100 NEW # 8111 FINE FILTER BAG (WHITE)
Replacement For: Aqua Products P/N: 8111
 SUPER 2 MICRON FINE BAG.
VACUUMS DEAD ALGAE, SAND & SILT.
TOMCAT® REPLACEMENT PART		 $34.99
Quantity:
45 Tomcat Replacement Parts : Mesh Filter Bag 001-1200* 8200 NEW # 8112 MESH FILTER BAG
Replacement For: Aqua Products P/N: 8112
 HIGH WATER FLOW MESH BAG.
VACUUMS LEAVES FAST.
 TOMCAT® REPLACEMENT PART		 $29.99
Quantity:
45 Tomcat Replacement Parts : Mesh Filter Bag 001-1209* 8200 NEW # 8112 MESH FILTER BAG (WHITE)
Replacement For: Aqua Products P/N: 8112
 HIGH WATER FLOW MESH BAG.
VACUUMS LEAVES FAST.
 TOMCAT® REPLACEMENT PART		 $29.99
Quantity:
46   023-0070 1602 FLOAT, CABLE $3.29
Quantity:
47   023-2000 11003 CLEVIS PIN $2.62
Quantity:

48

   023-2010 11004 WASHER $2.29
Quantity:
49   023-2020 11005 COTTER RING $0.76
Quantity:
50 Tomcat Replacement Parts : Plug 3-Pin Male 001-0075* 1615C PLUG, 3-PIN, MALE
Replacement For: Aqua Products P/N: 1615C
This Plug Is The Replacement For The 2-Pin
Configuration, Just Remove The 3rd Pin.
 TOMCAT® REPLACEMENT PART		 $12.00
Quantity:
51 Tomcat Replacement Parts : Socket 3-Pin Female 001-1055* 7220C SOCKET, 3-PIN, FEMALE
Replacement For: Aqua Products P/N: 7220C
This Socket Is The Replacement For
The 2-Pin Configuration.
 This Part Is ONLY The Socket.
It Is Not Complete With Door Flap.
TOMCAT® REPLACEMENT PART		 $8.00
Quantity:
52   023-0600 2666 LEG, FOR POWER SUPPLY $2.38
Quantity:
53   023-0360 2117 STRAIN RELIEF, POWER SUPPLY $7.45
Quantity:
54 Tomcat Replacement Parts : Cord for Power Supply 007-505* 7102 CORD FOR POWER SUPPLY
Replacement For: Aqua Products P/N: 7102
TOMCAT® REPLACEMENT PART		 $10.00
Quantity:
  Tomcat Replacement Parts : Fuse Mini 001-1020* 7207 FUSE, MINI, RESIDENTIAL
Replacement For: Aqua Products P/N: 7207
TOMCAT® REPLACEMENT PART		 $1.25
Quantity:
56 Tomcat Replacement Parts : Fuse Holder Push & Turn 001-0980* 7005 FUSE HOLDER, PUSH & TURN
Replacement For: Aqua Products P/N: 7005
TOMCAT® REPLACEMENT PART		 $7.00
Quantity:
57   023-3130 7041A HANDLE, RUBBER
w/HOLDERS & HARDWARE		 $5.70
Quantity:
58   023-1750 7208 SWITCH, NO LIGHT, THIN
(1.25" LONG X .5" WIDE)		 $7.47
Quantity:
59   023-1560 7074 TIMER, 7 HOUR, FRONT DIAL $48.01
Quantity:

*These TOMCAT® Parts Are Manufactured By Aquaquality Pools & Spas, inc. And Are Not Made By Aqua Products, inc.
 TOMCAT® Parts Are Lower Priced For Valued Savings Combined With High Quality!!

1.) Click the picture below to view the
manufacturers exploded view drawing and find
the image # of the parts you are looking for.
2.) Navigate back to Aquaquality Pools
and scroll down to order parts.

Aqua Products Schematics For Residential & Commercial Pool Cleaners

-Third Party Link Disclaimer-
By accessing the link above you will be leaving Aquaquality's website
and entering a website hosted by another party.

Aqua Products Automatic Pool Cleaner
Parts For:

Duramax Junior HT

 ↑ Scroll Up To Order Parts. ↑
Most Parts In Stock.
Ready For Immediate Shipment!
Lowest Prices & Express Shipping!

Technical Support
Call Toll Free 1-866-876-8643
Technical Support



Factory Original Parts:

ITEM #


AQUAQUALITY P/N

AQUA PRODUCTS P/N

DESCRIPTION

PRICE

BUY NOW
1   023-4920 S2005WBL BODY ASSEMBLY $132.90
Quantity:
2 023-3030 3400WT SIDE PLATE $25.51
Quantity:
3 Parts & Repairs - Drive Track Model G 023-0900 3203 DRIVE TRACK w/TABS (EACH)
We Recommend To Replace
 Drive Tracks In Pairs.		 $20.35
Quantity:
4   023-2950 3387WT NOZZLE BRACKET $10.26
Quantity:
5 Tomcat Replacement Parts & Repairs - Blue Diamond Pool Cleaner Parts & Repairs - Lock Tabs 023-3450 9204BL LOCK TABS (PAIR)
REPLACING LOCK TABS WILL KEEP
 THE BOTTOM LID ASSEMBLY
 SECURE INSIDE THE MACHINE!		 $3.30
Quantity:
6   023-0440 2303 SCREW, LOCK TAB $1.16
Quantity:
7   023-1680 7133  NUT, LOCK TAB $0.76
Quantity:
8   023-5550 SA69007
(FORMERLY A6010U)		 PUMP MOTOR
(6 MONTH WARRANTY)		 $277.66
Quantity:
9   023-2570 2040WT SWITCH , OVAL HANDLE BRACKET $4.56
Quantity:

10

   023-1290 5087 SPRING $1.16
Quantity:
11   023-1000 3402 LOCK NUT, SIDE PLATE $1.10
Quantity:
12   023-3580 A10004WT HANDLE ASSEMBLY $95.05
Quantity:

13

   005-336 5061 SCREW $1.00
Quantity:
14   023-0040 1110 INSERT $0.77
Quantity:
15   023-2090 11065 WASHER, P-CLIP $1.16
Quantity:
16   023-5820 SA89025
(FORMERLY A8577)		 DRIVE MOTOR
(6 MONTH WARRANTY)		 $449.05
Quantity:
17   023-0630 2700 SCREW, SIDE PLATE
OR P-CLIP,
LARGE HEAD		 $1.16
Quantity:
18
&
19		 Parts & Repairs - Bushing Side Plate 023-2750 2600BKT2 BUSHING, SIDE PLATE
BLACK, MOLYBDENUM POLYMER
We Recommend To Replace
Side Plate Bushings
With A Complete Set of 6.		 $2.53
Quantity:
20 Washer for Drive Pulley 023-1140 3607 WASHER, DRIVE PULLEY $5.33
Quantity:
21 Drive Pulley Medium 023-4260 A3605 PULLEY ASSEMBLY, MEDIUM $30.94
Quantity:
22 Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Stepped Sleeve Roller 023-1110 3506 STEPPED SLEEVE ROLLER
We Recommend To Replace
 Stepped Sleeve Roller In Pairs.		 $2.53
Quantity:
23 Tomcat Replacement Parts : Retaining Ring 023-2060 11059 USE # 11058 RETAINING RING $3.36
Quantity:
24 Parts & Repairs - Drive Belts (Pair) 023-0910 3302 DRIVE BELTS (PAIR) $15.90
Quantity:
25   023-1310 5301 FILTER SCREEN $31.16
Quantity:
26 Washer for Wheel Tube 023-1130 3603 WASHER, WHEEL TUBE $1.16
Quantity:
27   023-0810 3101 FLOAT, PLACE UNDER
DRIVE MOTOR		 $1.53
Quantity:
28   023-2720 2250WT OUTLET RING $8.34
Quantity:
29   023-2670 2230WT-1 OUTLET TOP 19.38
Quantity:
30   023-0750 2901 SCREW $1.16
Quantity:

31

   023-0400 2260 SCREW, OUTLET TOP, H-FLOAT
OR SIDE PLATE 		$1.16
Quantity:
32   023-0430 2302 SCREW, MOTOR $1.16
Quantity:
33   023-1330 5309 STRING FOR 5310 $0.76
Quantity:
34 Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - P Clip 023-0290 2102 P-CLIP, 7/16", PLASTIC $1.16
Quantity:
35 023-4760 A9600BL BOTTOM LID ASSEMBLY w/WHEELS
This lid may resolve the problem of the
pool cleaner getting stuck on the
bottom main drain grate.
However, if the pool cleaner still gets stuck on
the main drain then we recommend to purchase
the Polaris® UniBridge® / UniCover®
 P/N: 5820 listed above.		 $90.59
Quantity:
36 Parts & Repairs - Bushing Pin Support 023-0540 2610 BUSHING, PIN SUPPORT $4.26
Quantity:
37 Large Roller 023-1160 3700 LARGE ROLLER $3.29
Quantity:
38   023-3350 7184C POWER SUPPLY
This Power Supply Requires You To Have A 2-Pin
Male Plug On The End Of Your Floating Cable.
Please Refer To Item #50 Below
Aqua Products P/N: 1615C		 $179.11
Quantity:
39   023-0160 1628 GROMMET, 3/8" X 1 3/8" $2.23
Quantity:
40   023-0800 3021 PIN, SS, 12", FOR EZ BRUSH $4.21
Quantity:
41 Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Cable Assembly 023-3790 A1627501 75' CABLE ASSEMBLY $323.02
Quantity:
42   023-4380 A38204 WHEEL TUBE ASSEMBLY $64.00
Quantity:
43   023-2860 3016BL BRUSHES, RUBBER EZ, 12" (2) $71.26
Quantity:
  Tomcat Replacement Parts : Climbing Rings 023-6250 SP3007 CLIMBING RINGS, PVA (SET OF 4)
Help Pool Cleaner Wall Climbing & Traction
Especially On Slippery Surfaces By Adding
Climbing Rings, PVA Over The Brushes, Rubber.		 $24.44
Quantity:
44   023-1260 4709 GROOVED PIN COVER $2.53
Quantity:
45 Aquabot Fine Filter Bag 023-1820 8100 NEW # 8111 FINE FILTER BAG
SUPER 2 MICRON FINE BAG.
VACUUMS DEAD ALGAE, SAND & SILT. 		$44.81
Quantity:
45 Aquabot Mesh Filter Bag 023-1830 8200 NEW # 8112 MESH FILTER BAG
 HIGH WATER FLOW MESH BAG.
VACUUMS LEAVES FAST.		 $42.78
Quantity:
46   023-0070 1602 FLOAT, CABLE $3.29
Quantity:
47   023-2000 11003 CLEVIS PIN $2.62
Quantity:

48

   023-2010 11004 WASHER $2.29
Quantity:
49   023-2020 11005 COTTER RING $0.76
Quantity:
50   023-2420 1615C PLUG, 2-PIN, MALE $13.39
Quantity:
51   023-3370 7220C SOCKET, 2-PRONG, COMPLETE $13.71
Quantity:
52   023-0600 2666 LEG, FOR POWER SUPPLY $2.38
Quantity:
53   023-0360 2117 STRAIN RELIEF, POWER SUPPLY $7.45
Quantity:
54 Parts & Repairs - Cord for Power Supply 023-1580 7102 CORD FOR POWER SUPPLY $10.67
Quantity:
55   023-1740 7207 FUSE, MINI, RESIDENTIAL $2.81
Quantity:
56 Tomcat Replacement Parts & Repairs - Tomcat Replacement Parts & Repairs - Fuse Holder Push & Turn 023-1470 7005 FUSE HOLDER, PUSH & TURN $7.45
Quantity:
57   023-3130 7041A HANDLE, RUBBER
w/HOLDERS & HARDWARE		 $5.70
Quantity:
58   023-1750 7208 SWITCH, NO LIGHT, THIN
(1.25" LONG X .5" WIDE)		 $7.47
Quantity:
59   023-1560 7074 TIMER, 7 HOUR, FRONT DIAL $48.01
Quantity:



1.) Click the picture below to view the
manufacturers exploded view drawing and find
the image # of the parts you are looking for.
2.) Navigate back to Aquaquality Pools
and scroll down to order parts.

Aqua Products Schematics For Residential & Commercial Pool Cleaners

-Third Party Link Disclaimer-
By accessing the link above you will be leaving Aquaquality's website
and entering a website hosted by another party.

Aqua Products Automatic Pool Cleaner
Parts For:

Duramax Junior HT

 ↑ Scroll Up To Order Parts. ↑
Most Parts In Stock.
Ready For Immediate Shipment!
Lowest Prices & Express Shipping!

Technical Support
Call Toll Free 1-866-876-8643
Technical Support



Visit Our Showroom for Pool & Spa Supplies, Chemicals & Accessories at:
Aquaquality Pools & Spas, inc.
169 Post Avenue • Westbury, NY 11590-3457 • Nassau County • Long Island • New York

© 2016 Aquaquality Pools & Spas, inc., all rights reserved. Text, graphics, and HTML code on this entire website are protected by US and International  Copyright Laws, and may not be copied, reprinted, published, translated, hosted, or otherwise distributed by any means without explicit written permission.
