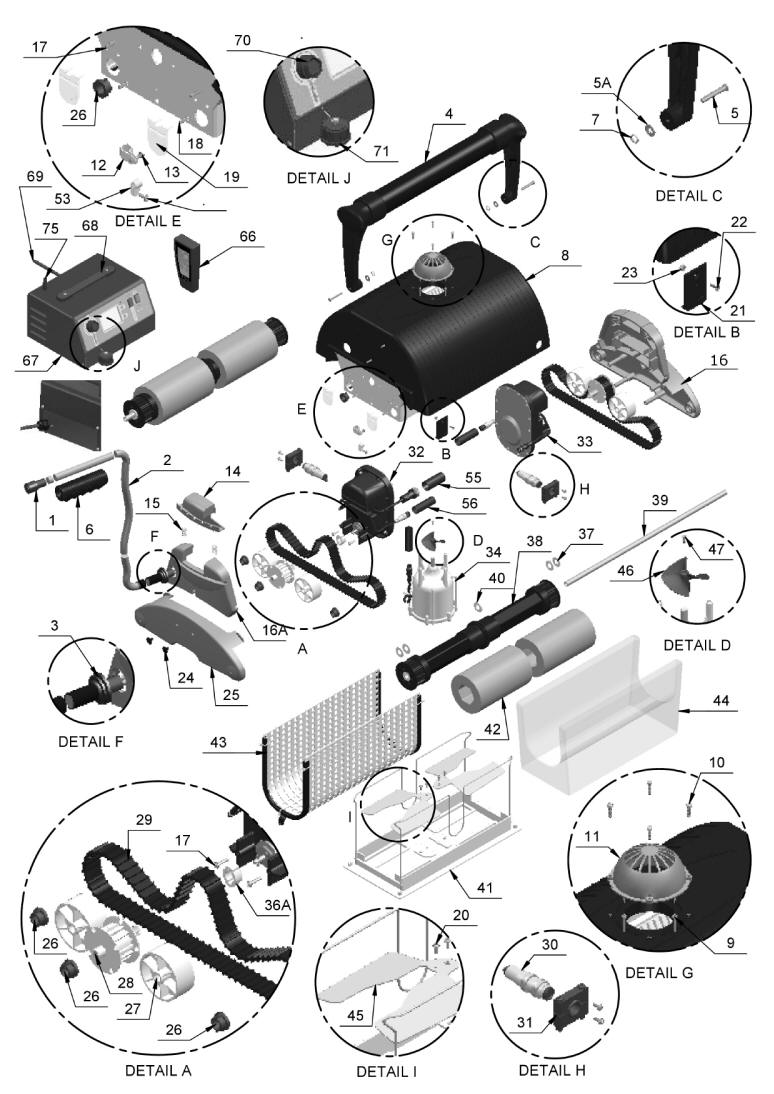

Aquatron : Blue Diamond Pro RC Schematics : Robotic Pool Cleaner Parts & Repairs

© Aquatron, inc.

Aquatron / Water Tech Corp. Automatic Pool Cleaner Parts For:

 Water Tech Blue Diamond® Pro Remote Control Parts

 ↓ Scroll Down To Order Parts. ↓
Most Parts In Stock ~ Ready For Immediate Shipment!
Lowest Prices & Express Shipping!




Technical Support
Call Toll Free 1-866-876-8643
Technical Support

We Sell Both Factory Original & TOMCAT® High Quality Discount Replacement Parts.

*These TOMCAT® Parts Are Manufactured By Aquaquality Pools & Spas, inc. And Are Not Made By Aqua Products, inc.
 TOMCAT® Parts Are Lower Priced For Valued Savings Combined With High Quality!!

ITEM #


AQUAQUALITY P/N

AQUA PRODUCTS P/N

DESCRIPTION

PRICE

BUY NOW
1   005-306 7156EL 4 PIN PLUG $59.00
Quantity:
2 Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Cable Assembly 005-315 WA00061-SP 100' CABLE ASSEMBLY $439.00
Quantity:
  Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - Arrow Tie 001-0060 N/A #5 ARROW TIE, REUSABLE
 NOT OFFERED BY AQUA PRODUCTS.
We Recommend To Use 2 Per Cable.
 KEEP YOUR CABLE ASSEMBLY
  NEAT & ORGANIZED!
 TOMCAT® REPLACEMENT PART		 $2.00
Quantity:
3   005-318 1623 SEALING GROMMET $3.00
Quantity:
4   005-324 AS01620BL-SP HANDLE ASSEMBLY $101.00
Quantity:

4A

   005-326 PP00162BL HANDLE INSERT $4.50
Quantity:
5   005-325 5078 CLEVIS PIN $1.00
Quantity:
5A   023-2010 11004 WASHER $2.29
Quantity:
6   023-5450 S7930 EZ-SWIVEL $42.66
Quantity:
7   023-2020 11005 COTTER RING $0.76
Quantity:

8

   005-333 AS1007700-SP BODY ASSEMBLY $175.00
Quantity:
9   023-0470 2500 SCREW, PUMP MOTOR $1.16
Quantity:
10   005-336 5061 SCREW, OUTLET TOP $1.50
Quantity:
11   005-339 5062P OUTLET TOP $11.00
Quantity:
12 Tomcat Replacement Parts & Repairs - Tomcat Replacement Blue Diamond Pool Cleaner Parts & Repairs - P Clip 001-0360* 2106

P-CLIP, 5/8" PLASTIC
 Replacement For: Aqua Products P/N: 2106
 TOMCAT® REPLACEMENT PART

 $1.00
Quantity:
14   005-348 5076P HANDLE BRACKET UPPER $13.00
Quantity:
15   005-346 5077 SPRING $2.00
Quantity:
16   005-345 5075P BRACKET LOWER $15.00
Quantity:
16A   005-344 5075HP BRACKET LOWER, CABLE SIDE $15.00
Quantity:
17   023-0630 2700 SCREW, SIDE PLATE,
 OR P-CLIP
LARGE HEAD		 $1.16
Quantity:
18   023-0640 2701 SCREW, SIDE PLATE,
SMALL HEAD		 $1.16
Quantity:
19   005-342 2305N DRAIN VALVE FLAP $1.50
Quantity:
21 Tomcat Replacement Parts : Lock Tabs 001-1240* 9204BL LOCK TABS (PAIR)
 Replacement for Aqua Products P/N: 9204BL
REPLACING LOCK TABS WILL KEEP
THE BOTTOM LID ASSEMBLY
SECURE INSIDE THE MACHINE!
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
21 Tomcat Replacement Parts : Lock Tabs 001-1243* 9204BL LOCK TABS (PAIR) (BLUE)
 Replacement for Aqua Products P/N: 9204BL
REPLACING LOCK TABS WILL KEEP
THE BOTTOM LID ASSEMBLY
SECURE INSIDE THE MACHINE!
TOMCAT® REPLACEMENT PART		 $3.00
Quantity:
22   023-0440 2303 SCREW, LOCK TAB $1.16
Quantity:
23   023-1680 7133  NUT, LOCK TAB $0.76
Quantity:
24   005-354 2400B TRIM INSERT $1.50
Quantity:
25   005-351 AS1062900 SIDE PLATE $38.00
Quantity:
26 Tomcat Replacement Parts : Side Plate Bushing 001-0400* 2600BKT2 BUSHING, SIDE PLATE
Replacement For: Aqua Products P/N: 2600BKT2
BLACK, MOLYBDENUM POLYMER
We Recommend To Replace
Side Plate Bushings
With A Complete Set of 8.
TOMCAT® REPLACEMENT PART		 $2.00
Quantity:
27   005-381 PP0043300 TENSION WHEEL $19.00
Quantity:
28   005-387 AS2000500 PULLEY ASSEMBLY $31.00
Quantity:

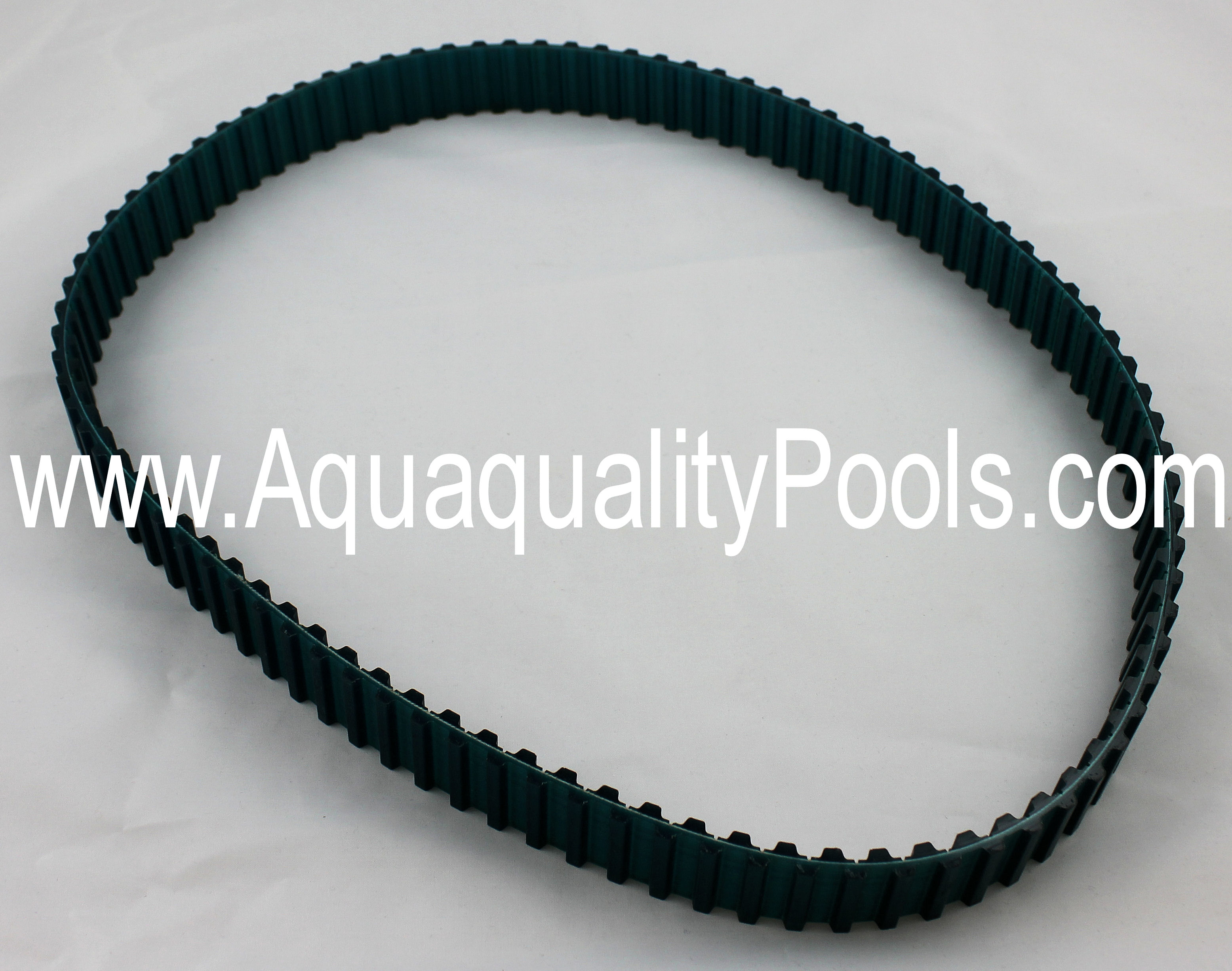

29 Parts & Repairs For Commercial Pool Cleaners - Drive Belt 005-388 RB00098 DRIVE BELT (EACH)
We Recommend To Replace
 Drive Belt In Pairs.
(NEW STYLE)		 $79.00
Quantity:

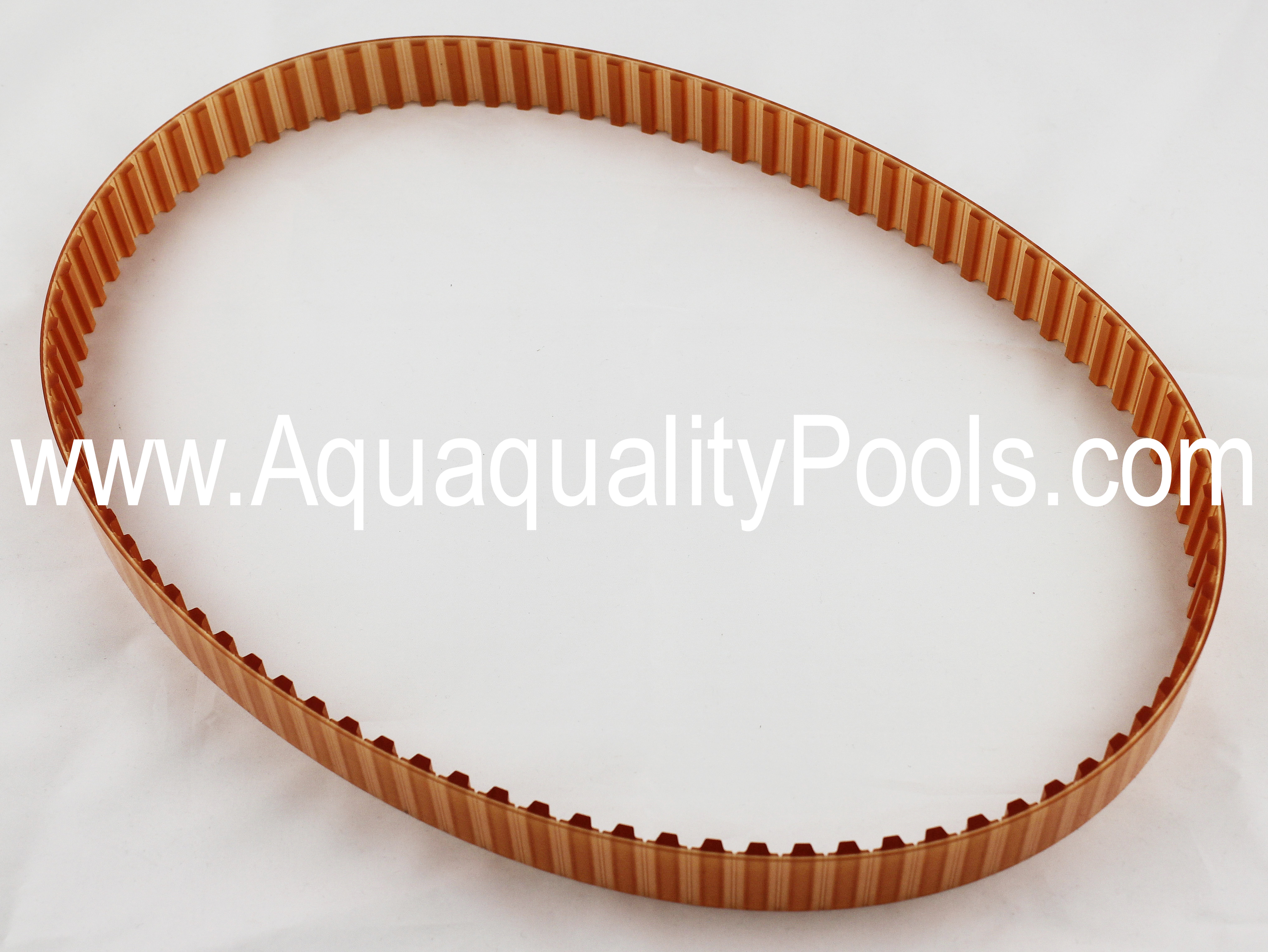

29 Parts & Repairs For Commercial Pool Cleaners - Drive Belt 005-390 3305 DRIVE BELT (EACH)
We Recommend To Replace
 Drive Belt In Pairs.
(OLD STYLE)		 $79.00
Quantity:
30   005-393 EP00012 INFRA RED SENSOR $190.00
Quantity:
31   005-396 2009 INFRA RED HOLDER W/ SCREWS $35.00
Quantity:
32   005-455 AS08646-SP DRIVE MOTOR MASTER $519.00
Quantity:
33   005-456 AS08647-SP DRIVE MOTOR SLAVE $404.00
Quantity:
34   005-465 AS06100-SP PUMP MOTOR $289.00
Quantity:
36A   005-357 PP0004500 CASE FOR PIN $3.00
Quantity:
37   005-372 AS38234BL WHEEL TUBE ASSEMBLY $41.00
Quantity:
37A   005-384 RB00099BL WHEEL PVC HUB (BLUE) $16.00
Quantity:

38

   001-0520* 3008A BRUSHES, PVA (SET OF 4)
Replacement For Aqua Products P/N: 3008A
TOMCAT® REPLACEMENT PART		 $89.99
Quantity:
38   005-385 RB00106BL PVC BRUSH (EACH) $24.00
Quantity:
38A   005-386 3051A LOCK PIN FOR BRUSH $15.00
Quantity:
39   005-378 3813 AXLE, WHEEL $21.00
Quantity:
40   023-0530 2607 WASHER FOR WHEEL & SIDE PLATE $1.65
Quantity:
41   005-399 A9200YMW BOTTOM LID ASSEMBLY $114.00
Quantity:
42 Tomcat Replacement Parts : Washer For Wheel Tube 001-0820* 3603 WASHER, WHEEL TUBE
Replacement For: Aqua Products P/N: 3603
TOMCAT® REPLACEMENT PART		 $1.20
Quantity:
42 Tomcat Replacement Parts : Washer For Wheel Tube 001-0826* 3603 WASHER, WHEEL TUBE (BLACK)
Replacement For: Aqua Products P/N: 3603
TOMCAT® REPLACEMENT PART		 $1.20
Quantity:
42 Tomcat Replacement Parts : Washer For Wheel Tube 001-0829* 3603 WASHER, WHEEL TUBE (WHITE)
Replacement For: Aqua Products P/N: 3603
TOMCAT® REPLACEMENT PART		 $1.20
Quantity:
43   005-405 AS09224 FILTER SCREEN ASSEMBLY $28.00
Quantity:
44 Tomcat Replacement Parts : Large Fine Filter Bag for Commercial Robots 001-1160* 8101 FINE FILTER BAG (LARGE)
Replacement For: Aqua Products P/N: 8101
 SUPER 2 MICRON FINE BAG.
VACUUMS DEAD ALGAE, SAND & SILT.
TOMCAT® REPLACEMENT PART		 $60.00
Quantity:
44   001-1169* 8101 FINE FILTER BAG (LARGE) (WHITE)
Replacement For: Aqua Products P/N: 8101
 SUPER 2 MICRON FINE BAG.
VACUUMS DEAD ALGAE, SAND & SILT.
TOMCAT® REPLACEMENT PART		 $60.00
Quantity:
44   023-1840 8201 MESH FILTER BAG (LARGE)
HIGH WATER FLOW MESH BAG.
VACUUMS LEAVES FAST.		 $64.19
Quantity:
45   005-402 P00407 BOTTOM LID VALVE $4.00
Quantity:
46   001-7090* P00038 PROPELLER
Replacement For: Aqua Products P/N: P00038
TOMCAT® REPLACEMENT PART		 $
Quantity:
47   005-363 SW00069 SCREW, PROPELLER $1.50
Quantity:
55   001-1360* 1625 SHRINK TUBE
1" LONG x 3/4" DIAMETER
Replacement For Aqua Products P/N: 1625
We Recommend Purchasing In
Quantities of Six inches Per Electrical Connection.
TOMCAT® REPLACEMENT PART		 $0.50
Quantity:
56   023-0090 1614 SHRINK TUBE
1" LONG x 1.5" DIAMETER
We Recommend Purchasing In
Quantities of Six inches Per Electrical Connection.		 $0.89
Quantity:
66   005-433 RC100100 REMOTE CONTROL $90.00
Quantity:
67   005-441 AS07131-SP POWER SUPPLY $509.00
Quantity:
68   005-420 SA00109 PLASTIC HANDLE $5.50
Quantity:
69   005-422 AC0109700 POWER CORD $15.00
Quantity:
71   005-414 7038 CAP W/ CHAIN $7.00
Quantity:
75   005-417 ASXW1043300 ANTENNA $15.00
Quantity:

*These TOMCAT® Parts Are Manufactured By Aquaquality Pools & Spas, inc. And Are Not Made By Aqua Products, inc.
 TOMCAT® Parts Are Lower Priced For Valued Savings Combined With High Quality!!

Aquatron / Water Tech Corp. Automatic Pool Cleaner Parts For:

 Blue Diamond® Pro Remote Control

 ↑ Scroll Up To Order Parts. ↑
Most Parts In Stock ~ Ready For Immediate Shipment!
Lowest Prices & Express Shipping!




Technical Support
Call Toll Free 1-866-876-8643
Technical Support



Factory Original Parts:

ITEM #


AQUAQUALITY P/N

AQUA PRODUCTS P/N

DESCRIPTION

PRICE

BUY NOW
1   005-306 7156EL 4 PIN PLUG $59.00
Quantity:
2   005-315 WA00061-SP 100' CABLE ASSEMBLY $439.00
Quantity:
3   005-318 1623 SEALING GROMMET $3.00
Quantity:
4   005-324 AS01620BL-SP HANDLE ASSEMBLY $101.00
Quantity:

4A

   005-326 PP00162BL HANDLE INSERT $4.50
Quantity:
5   005-325 5078 CLEVIS PIN $1.00
Quantity:
6   023-2010 11004 WASHER $2.29
Quantity:
7   023-2020 11005 COTTER RING $0.76
Quantity:

8

   005-333 AS1007700-SP BODY ASSEMBLY $175.00
Quantity:
9   023-0470 2500 SCREW, PUMP MOTOR $1.16
Quantity:
10   005-336 5061 SCREW, OUTLET TOP $1.50
Quantity:
11   005-339 5062P OUTLET TOP $11.00
Quantity:

12

   023-0310 2106 P-CLIP, 5/8", PLASTIC $1.16
Quantity:
14   005-348 5076P HANDLE BRACKET UPPER $13.00
Quantity:
15   005-346 5077 SPRING $1.50
Quantity:
16   005-345 5075P BRACKET LOWER $15.00
Quantity:
16A   005-344 5075HP BRACKET LOWER, CABLE SIDE 15.00
Quantity:
17   023-0630 2700 SCREW, SIDE PLATE,
 OR P-CLIP
LARGE HEAD		 $1.16
Quantity:
18   023-0640 2701 SCREW, SIDE PLATE,
SMALL HEAD		 $1.16
Quantity:
19   005-342 2305N DRAIN VALVE FLAP $1.50
Quantity:

20

   023-0400 2260 SCREW, OUTLET TOP, H-FLOAT
OR SIDE PLATE 		$1.16
Quantity:
21 Tomcat Replacement Parts & Repairs - Blue Diamond Pool Cleaner Parts & Repairs - Lock Tabs 023-3450 9204BL LOCK TABS (PAIR)
REPLACING LOCK TABS WILL KEEP
 THE BOTTOM LID ASSEMBLY
 SECURE INSIDE THE MACHINE! 		$3.30
Quantity:
22   023-0440 2303 SCREW, LOCK TAB $1.16
Quantity:
23   023-1680 7133  NUT, LOCK TAB $0.76
Quantity:
24   005-354 2400B TRIM INSERT $1.50
Quantity:
25   005-351 AS1062900 SIDE PLATE $38.00
Quantity:
26 Parts & Repairs - Bushing Side Plate 023-2750 2600BKT2 BUSHING, SIDE PLATE
BLACK, MOLYBDENUM POLYMER
We Recommend To Replace
Side Plate Bushings
With A Complete Set of 8.		 $2.53
Quantity:
27   005-381 PP0043300 TENSION WHEEL $19.00
Quantity:
28   005-387 AS2000500 PULLEY ASSEMBLY $31.00
Quantity:
29 Parts & Repairs For Commercial Pool Cleaners - Drive Belt 005-388 RB00098 DRIVE BELT (EACH)
We Recommend To Replace
 Drive Belt In Pairs.
(NEW STYLE)		 $79.00
Quantity:
29 Parts & Repairs For Commercial Pool Cleaners - Drive Belt 005-390 3305 DRIVE BELT (EACH)
We Recommend To Replace
 Drive Belt In Pairs.
(OLD STYLE)		 $79.00
Quantity:
30   005-393 EP00012 INFRA RED SENSOR $190.00
Quantity:
31   005-396 2009 INFRA RED HOLDER W/ SCREWS $35.00
Quantity:
32   005-455 AS08646-SP DRIVE MOTOR MASTER $519.00
Quantity:
33   005-456 AS08647-SP DRIVE MOTOR SLAVE $404.00
Quantity:
34   005-465 AS06100-SP PUMP MOTOR $289.00
Quantity:
36A   005-357 PP0004500 CASE FOR PIN $3.00
Quantity:
37   005-372 AS38234BL WHEEL TUBE ASSEMBLY $41.00
Quantity:
37A   005-384 RB00099BL WHEEL PVC HUB (BLUE) $16.00
Quantity:
38   005-385 RB00106BL PVC BRUSH (EACH) $24.00
Quantity:
38A   005-386 3051A LOCK PIN FOR BRUSH $15.00
Quantity:
39   005-378 3813 AXLE, WHEEL $21.00
Quantity:
38A   005-386 3051A LOCK PIN FOR BRUSH $15.00
Quantity:
39   005-378 3813 AXLE, WHEEL $21.00
Quantity:
40   023-0530 2607 WASHER FOR WHEEL & SIDE PLATE $1.65
Quantity:
41   005-399 A9200YMW BOTTOM LID ASSEMBLY $114.00
Quantity:
42 Washer for Wheel Tube 023-1130 3603 WASHER, WHEEL TUBE $1.16
Quantity:
43   005-405 AS09224 FILTER SCREEN ASSEMBLY $28.00
Quantity:
44   023-1810 8101 FINE FILTER BAG (LARGE)
SUPER 2 MICRON FINE BAG.
VACUUMS DEAD ALGAE, SAND & SILT		 $66.21
Quantity:
44   023-1840 8201 MESH FILTER BAG (LARGE)
HIGH WATER FLOW MESH BAG.
VACUUMS LEAVES FAST.		 $64.19
Quantity:
45   005-402 P00407 BOTTOM LID VALVE $4.00
Quantity:
46   005-360 P00038 PROPELLER $11.50
Quantity:
47   005-363 SW00069 SCREW, PROPELLER $1.50
Quantity:
54   023-5450 S7930 EZ-SWIVEL $42.66
Quantity:

55

   023-0400 2260 SCREW, OUTLET TOP, H-FLOAT
OR SIDE PLATE 		$1.16
Quantity:
56   023-0090 1614 SHRINK TUBE
1" LONG x 1.5" DIAMETER
We Recommend Purchasing In
Quantities of Six inches Per Electrical Connection.		 $0.89
Quantity:
    023-0140 1625 SHRINK TUBE
1" LONG x 3/4" DIAMETER
We Recommend Purchasing In
Quantities of Six inches Per Electrical Connection.		 $0.89
Quantity:
66   005-433 RC100100 REMOTE CONTROL $90.00
Quantity:
67   005-441 AS07131-SP POWER SUPPLY $509.00
Quantity:
68   005-420 SA00109 PLASTIC HANDLE $5.50
Quantity:
69   005-422 AC0109700 POWER CORD $15.00
Quantity:
71   005-414 7038 CAP W/ CHAIN $7.00
Quantity:
75   005-417 ASXW1043300 ANTENNA $15.00
Quantity:



Aquatron / Water Tech Corp. Automatic Pool Cleaner Parts For:

 Blue Diamond® Pro Remote Control

 ↑ Scroll Up To Order Parts. ↑
Most Parts In Stock ~ Ready For Immediate Shipment!
Lowest Prices & Express Shipping!




Technical Support
Call Toll Free 1-866-876-8643
Technical Support



Visit Our Showroom for Pool & Spa Supplies, Chemicals & Accessories at:
Aquaquality Pools & Spas, inc.
169 Post Avenue • Westbury, NY 11590-3457 • Nassau County • Long Island • New York

© 2016 Aquaquality Pools & Spas, inc., all rights reserved. Text, graphics, and HTML code on this entire website are protected by US and International  Copyright Laws, and may not be copied, reprinted, published, translated, hosted, or otherwise distributed by any means without explicit written permission.
